1.78010L103

1.78010L103

Kennametal
Артикул: 1.78010L103
В наличии
В корзину
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
NC
DIN
VKT10100105
DIN CSW1
KH-C8FIX12-L
EPSR Insert included angle
84 Degree
FamilyProducts
TOOLHOLDER FIXPERFECT 1.7 CUT 8
GAMO Rake angle orthogonal
6 Degree
HAND Cutting direction
L - Left
HF Functional height
10 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

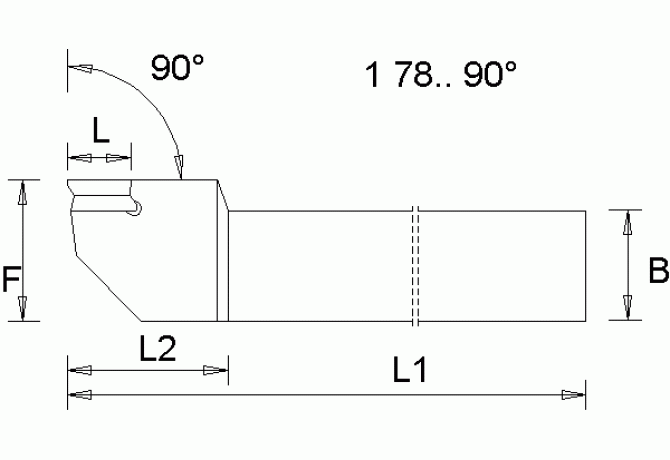

KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
12 mm
LAMS Inclination angle
-6 Degree
LF Functional length
70 mm
LH Head length
20 mm
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1010
LOC-03 H Shank height
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100105
MTP Clamping type code
X - Special mounting type
Name Identifying order number
1.78010L103
OAL Overall length
70 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
14 mm
Working process
DDA - External turning
