1.77232L401
1.77232L401
Артикул:
1.77232L401
В наличии
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT32320105
EPSR Insert included angle
84 Degree
FamilyProducts
TOOLHOLDER FIXPERFECT 1.7 CUT 8
GAMO Rake angle orthogonal
6 Degree
HAND Cutting direction
L - Left
HF Functional height
32 mm
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

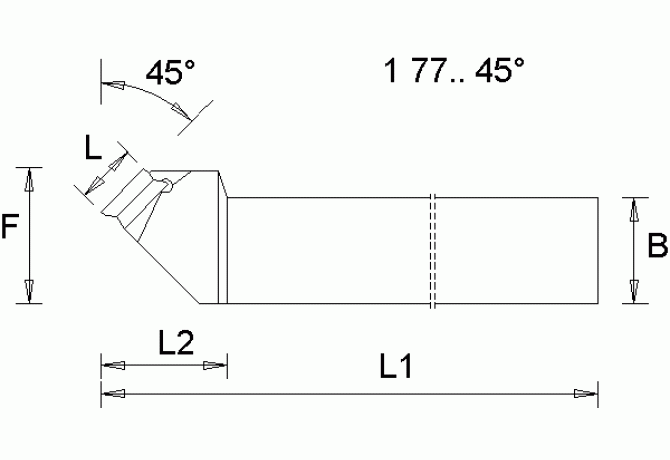

KAPR Tool cutting edge angle
45 Degree
L Cutting edge length
18 mm
LF Functional length
170 mm
LH Head length
36 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3232
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
MTP Clamping type code
X - Special mounting type
Name Identifying order number
1.77232L401
OAL Overall length
170 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
41 mm
Working process
No working processes available
