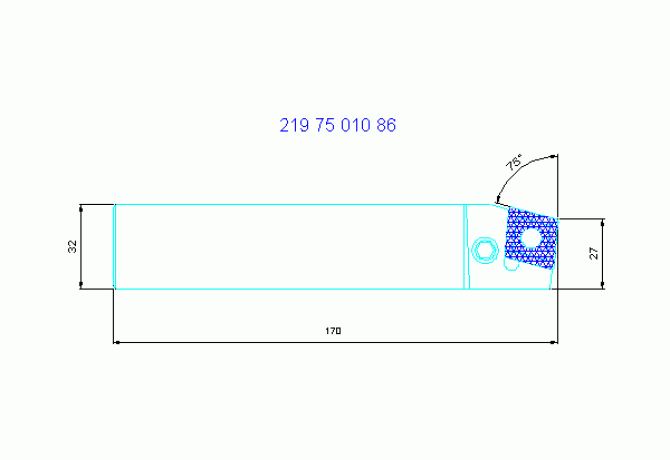

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 12197501086

12197501086

12197501086

Widia

Артикул: 12197501086

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

19.05 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

6.35 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

85 €

DHD Drop head design

2 - Normal and overhead

DIN

VKT32320105

DIN CSW1

CN1906 2N

EPSR Insert included angle

80 Degree

FamilyProducts

Tool holder with square-shank for inserts

HAND Cutting direction

R - Right

HF Functional height

32 mm

ID Technical product number

12197501086

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

19.3 mm

LF Functional length

170 mm

LH Head length

36 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

CN..190612

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

12197501086

OAL Overall length

170 mm

STDDES Standard designation

PCBNR3232P19

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

27 mm

WFA A dimension on wf

4.6 mm

Working process

DDA - External turning
