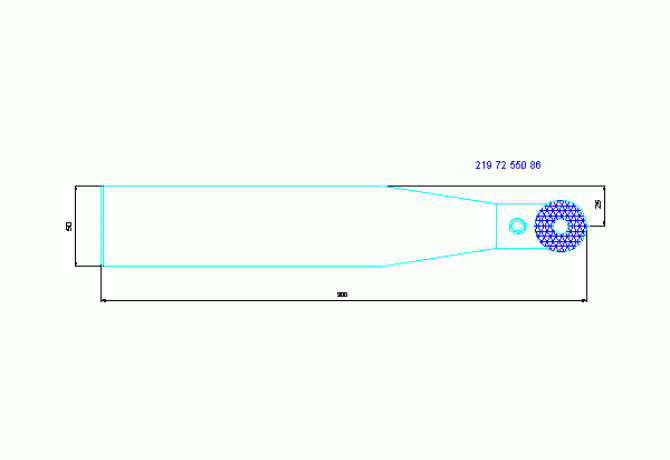

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 12197255086

12197255086

12197255086

Widia

Артикул: 12197255086

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

32 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

9.52 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

177.2 €

DHD Drop head design

2 - Normal and overhead

DIN

VKT50500105

DIN CSW1

RC3209 2N

EPSR Insert included angle

0 Degree

FamilyProducts

Tool holder with square-shank for inserts

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

50 mm

ID Technical product number

12197255086

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

L Cutting edge length

32 mm

LAMS Inclination angle

0 Degree

LF Functional length

300 mm

LH Head length

56 mm

LOC-03 B Shank width

50 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

5050

LOC-03 H Shank height

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT50500105

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

12197255086

OAL Overall length

300 mm

STDDES Standard designation

PRDCN5050T32

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

25 mm

Working process

DDA - External turning
