Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 12196222086

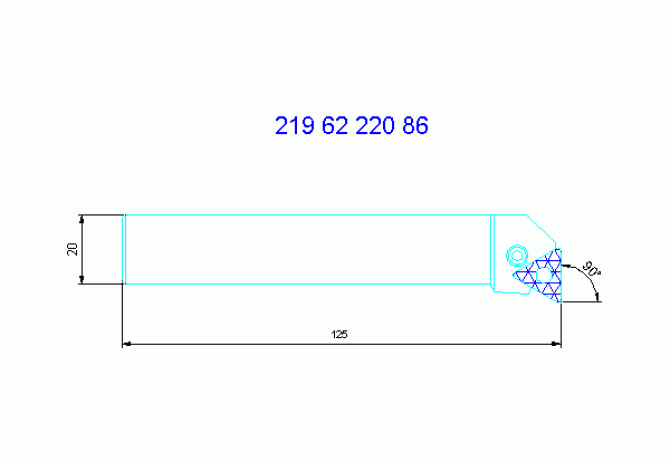

12196222086

12196222086

Widia

Артикул: 12196222086

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

59.3 €

DHD Drop head design

2 - Normal and overhead

DIN

VKT20200105

DIN CSW1

TN1604 2N

EPSR Insert included angle

60 Degree

FamilyProducts

Tool holder with square-shank for inserts

GAMF Rake angle radial

-6 Degree

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

12196222086

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

L Cutting edge length

16.5 mm

LAMS Inclination angle

-6 Degree

LF Functional length

125 mm

LH Head length

20 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

MIID Master insert identification

TN..160408

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

12196222086

OAL Overall length

125 mm

STDDES Standard designation

PTFNL2020K16

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

25 mm

Working process

DDA - External turning
