Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 12153334786

12153334786

12153334786 12153334786

12153334786

Widia
Артикул: 12153334786
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
2.38 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
WI - Widia
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
E - Hard metal shank with steel head, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
229.6 €
DHD Drop head design
2 - Normal and overhead
DIN
ZYL01202215
DIN CSW1
TC1102 3N

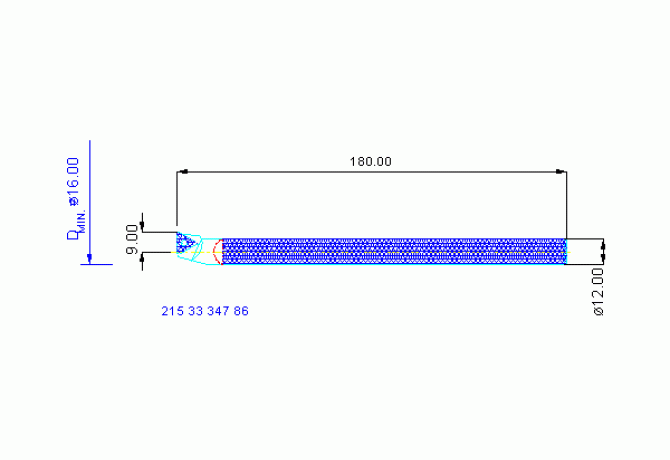

DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Tool holder for boring with cylindrical-shank
GAMF Rake angle radial
-8 Degree
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
6 mm
ID Technical product number
12153334786
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
-8 Degree
LF Functional length
180 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202215
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
12153334786
OAL Overall length
180 mm
STDDES Standard designation
E12Q-STFCL11
SX Shank cross section shape code
10 - Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
9 mm
Working process
DDI - Internal turning
