12150600400
12150600400
Артикул:
12150600400
В наличии
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
WI - Widia
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
90.6 €
DHD Drop head design
2 - Normal and overhead
DIN
ZYL02002205
DIN CSW1
CC09T3 3N

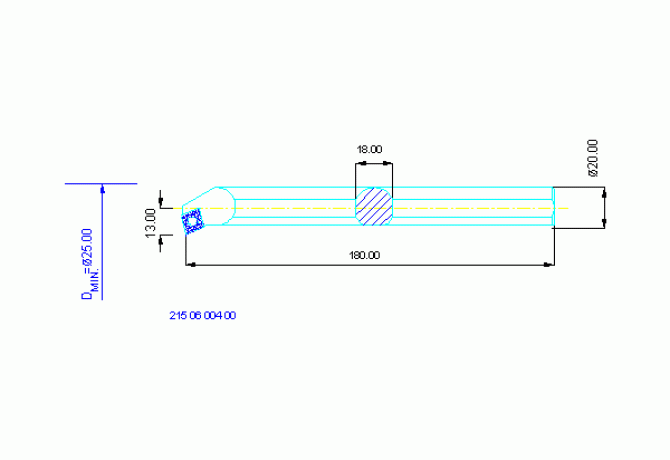

DMIN Minimum bore diameter
25 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Tool holder for boring with cylindrical-shank
GAMF Rake angle radial
-5 Degree
HAND Cutting direction
R - Right
HF Functional height
9 mm
ID Technical product number
12150600400
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
9.65 mm
LF Functional length
180 mm
LOC-03 B Shank width
18.5 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 H Shank height
18 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002205
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
12150600400
OAL Overall length
180 mm
STDDES Standard designation
S20Q-SCKCR09-T3
SX Shank cross section shape code
31 - (left) Round shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
13 mm
Working process
DDI - Internal turning
