12053651600
12053651600
Артикул:
12053651600
В наличии
Характеристики
A2A Clearance angle major Pos. A
5 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
WI - Widia
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
65.5 €
DHD Drop head design
2 - Normal and overhead
DIN
VKT16160105
DIN CSW1
VB1604 3N
EPSR Insert included angle
35 Degree
FamilyProducts
Tool holder with square-shank for inserts
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
16 mm
ID Technical product number
12053651600
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

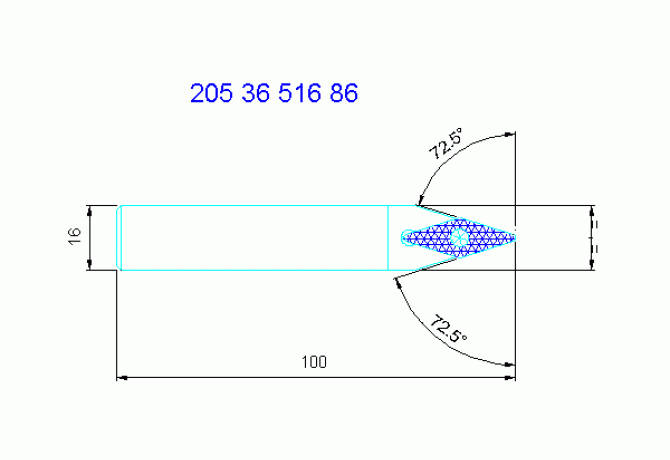

KAPR Tool cutting edge angle
72.5 Degree
L Cutting edge length
16.6 mm
LAMS Inclination angle
0 Degree
LF Functional length
100 mm
LH Head length
32 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
VB..160408
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
12053651600
OAL Overall length
100 mm
STDDES Standard designation
SVVBN1616H16
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
8 mm
Working process
DDA - External turning
