Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 12050152086

12050152086

12050152086 12050152086

12050152086

Widia
Артикул: 12050152086
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
WI - Widia
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
63.4 €
DHD Drop head design
2 - Normal and overhead
DIN
VKT20200105
DIN CSW1
SC1204 3N
EPSR Insert included angle
90 Degree
FamilyProducts
Tool holder with square-shank for inserts
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
20 mm
ID Technical product number
12050152086
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

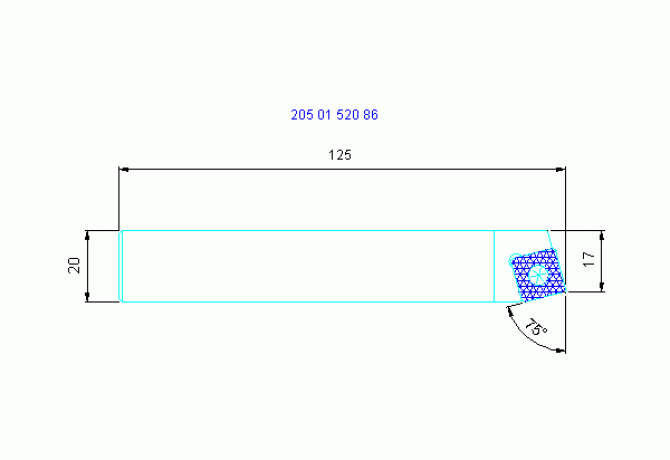

KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
0 Degree
LF Functional length
125 mm
LH Head length
20 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
SC..120408
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
12050152086
OAL Overall length
125 mm
STDDES Standard designation
SSBCL2020K12
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
17 mm
WFA A dimension on wf
3.1 mm
Working process
DDA - External turning
