Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 1.17720L131

1.17720L131

1.17720L131 1.17720L131

1.17720L131

Kennametal
Артикул: 1.17720L131
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT20200105
EPSR Insert included angle
80 Degree
FamilyProducts
TOOLHOLDER FIXPERFECT 1.1 CUT 2
GAMO Rake angle orthogonal
13 Degree
HAND Cutting direction
L - Left
HF Functional height
20 mm
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

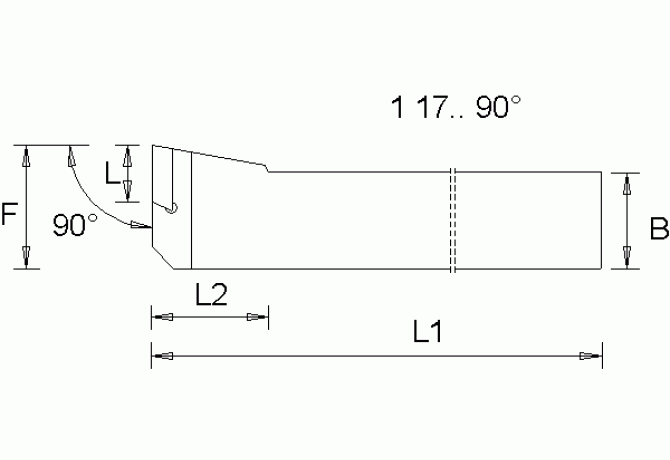

KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
10.5 mm
LF Functional length
125 mm
LH Head length
26 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MTP Clamping type code
X - Special mounting type
Name Identifying order number
1.17720L131
OAL Overall length
125 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
25 mm
Working process
No working processes available
