Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 1.17125R330

1.17125R330

1.17125R330 1.17125R330

1.17125R330

Kennametal
Артикул: 1245278
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
VKT25250105
DIN CSW1
KH-C2FIX15-R
EPSR Insert included angle
80 Degree
FamilyProducts
TOOLHOLDER FIXPERFECT 1.1 CUT 2
GAMO Rake angle orthogonal
13 Degree
HAND Cutting direction
R - Right
HF Functional height
25 mm
ID Technical product number
1245278
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

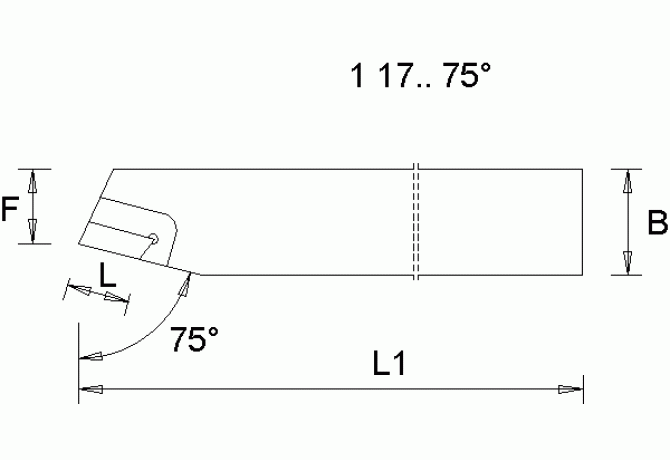

KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
14.5 mm
LF Functional length
150 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MTP Clamping type code
X - Special mounting type
Name Identifying order number
1.17125R330
OAL Overall length
150 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
17 mm
Working process
No working processes available
