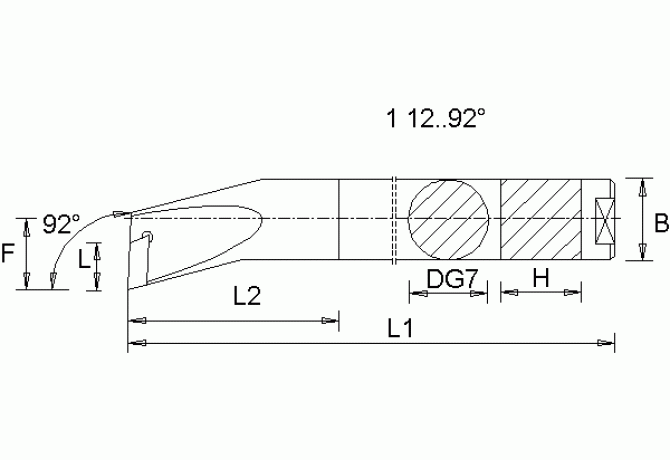

Главная Каталог продукции Toolunited 14 309-01 - Tool holder for longitudinal and transversal turning 1.12032R131

1.12032R131

1.12032R131 1.12032R131

1.12032R131

Kennametal
Артикул: 1.12032R131
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT32320105
DMIN Minimum bore diameter
52 mm
EPSR Insert included angle
80 Degree
FamilyProducts
BORING BAR FIXPERFECT 1.1
GAMO Rake angle orthogonal
13 Degree
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
92 Degree
L Cutting edge length
10.5 mm
LF Functional length
355 mm
LH Head length
160 mm
LOC-03 B Shank width
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3232
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32320105
MTP Clamping type code
X - Special mounting type
Name Identifying order number
1.12032R131
OAL Overall length
355 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
28 mm
Working process
No working processes available
