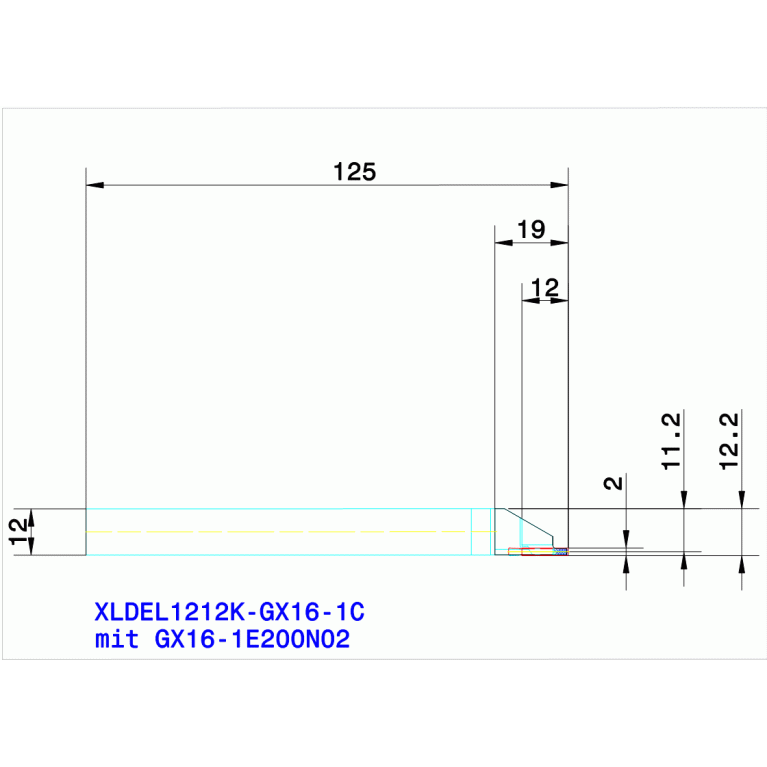

XLDEL1212K-GX16-1C
XLDEL1212K-GX16-1C
Артикул:
5531868
В наличии
Характеристики
CDX Cutting depth maximum
12 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CW Cutting width
2 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT12120105
DIN CSW1
W-GX161000***EX**
FamilyProducts
Shank tool – Radial/contra XLDE...C
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
12 mm
ID Technical product number
5531868
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A1212$$$$
ISO CSW1
WR$$GX161000***EX**
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
125 mm
LOC-03 B Shank width
12 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
1212
LOC-03 H Shank height
12 mm
LOC-03 ISO
VKT01A1212$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120105
LPR Protruding length
19 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
XLDEL1212K-GX16-1C
OAL Overall length
125 mm
WF Functional width
11.2 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.225 kg
