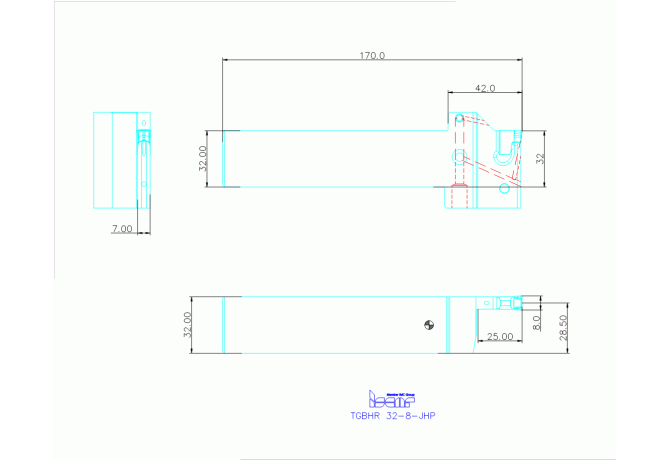

TGBHR 32-8-JHP

Артикул: 2801717

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

25 mm

CEDC Cutting edge count

CNSC Coolant entry style code

5 - With coolant supply (entry) in radial direction in front of

COMPC Company code

IS - Iscar

CW Cutting width

8 mm

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state

7/1/2017

DIN

VKT32320115

END KAPP DIST End chamfer distance

12 mm

FamilyProducts

Grooving and Turning SUMO-GRIP Tools with Coolant Channels

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

HF Functional height

32 mm

ID Technical product number

2801717

Interface codes

J6 /

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

170 mm

LH Head length

42 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320115

MIID Master insert identification

TAG N-x

Name Identifying order number

TGBHR 32-8-JHP

OAL Overall length

170 mm

SX Shank cross section shape code

01 - Square shank

WF Functional width

28.5 mm

Working process

DEA - Outer diameter grooving
