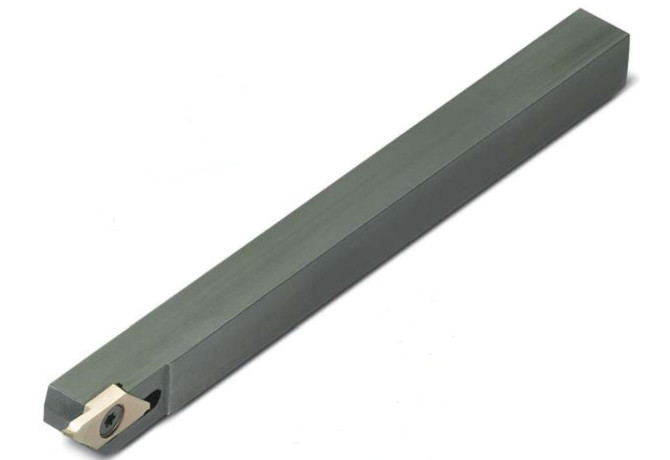

Главная Каталог продукции Toolunited 14 309-04 - Turning tool for OD grooving and parting SSCFL1010K16

SSCFL1010K16

SSCFL1010K16 SSCFL1010K16 SSCFL1010K16

SSCFL1010K16

Kennametal
Артикул: 3617891
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
8 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CW Cutting width
16 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/7/2008
DIN
VKT10100105
DIN CSW1
KH-SCF-cutoff
FamilyProducts
Cutoff toolholder - integral shank SSCF
HAND Cutting direction
L - Left
HF Functional height
10 mm
ID Technical product number
3617891
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
LF Functional length
125 mm
LH Head length
20 mm
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1010
LOC-03 H Shank height
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100105
Name Identifying order number
SSCFL1010K16
OAL Overall length
125 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
8 mm
Working process
No working processes available
