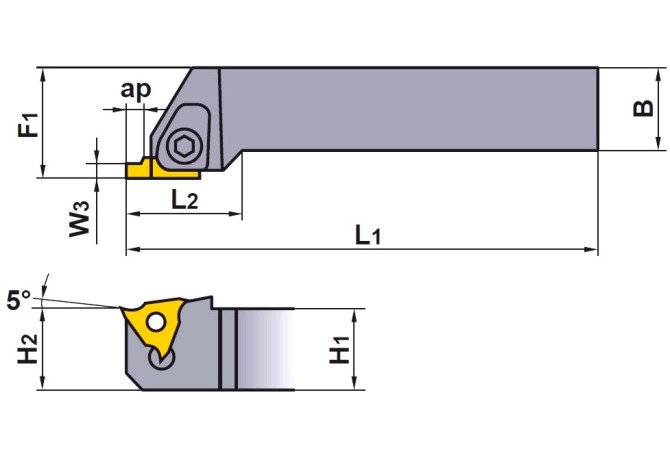

Главная Каталог продукции СЗЦПК инструмент 14 309-04 - Turning tool for OD grooving and parting MG1L2525M4323

MG1L2525M4323

MG1L2525M4323 MG1L2525M4323

MG1L2525M4323

Mitsubishi Materials
Артикул: MG1L2525M4323
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
4.5 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CW Cutting width
3.3 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
B - Solid steel, with vibration absorber
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
VKT25250105
DIN CSW1
MI-MGTL43
FamilyProducts
MG1 holder, clamp-on type
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
5 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
L - Left
HF Functional height
25 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
LF Functional length
150 mm
LH Head length
30 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
MGTL43330
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
MG1L2525M4323
OAL Overall length
150 mm
SX Shank cross section shape code
01 - Square shank
WF Functional width
32 mm
Working process
DEA - Outer diameter grooving
