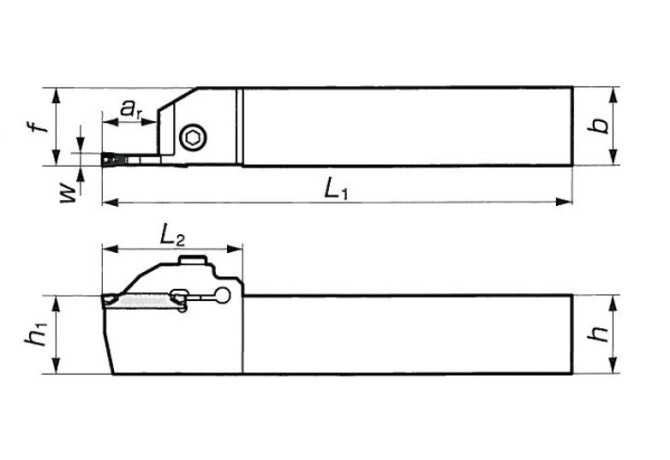

GNDM L 2525 M 312

Артикул: GNDM L 2525 M 312

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

12 mm

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CW Cutting width

3 mm

CXSC Coolant exit style code

0 - Without coolant exit

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2021

DIN

VKT25250105

DIN CSW1

SU-GCMN30

FamilyProducts

toolholder GNDM for radial grooving

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

GNDM L 2525 M 312

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

150 mm

LH Head length

36.6 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

MIID Master insert identification

GCM N3002

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

GNDM L 2525 M 312

OAL Overall length

150 mm

SX Shank cross section shape code

01 - Square shank

WF Functional width

25 mm

Working process

DAA - Parting,DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,EEA - Grooving and cutting off
