Главная Каталог продукции СЗЦПК инструмент 14 309-04 - Turning tool for OD grooving and parting G2622.12R-3T20SX

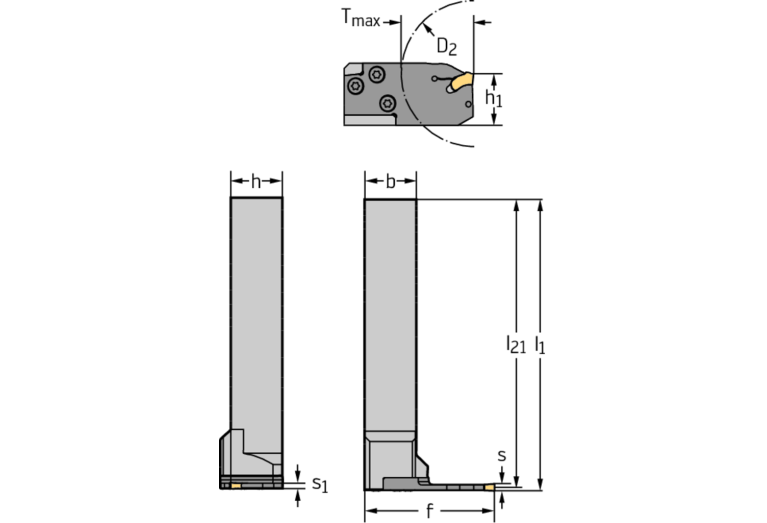

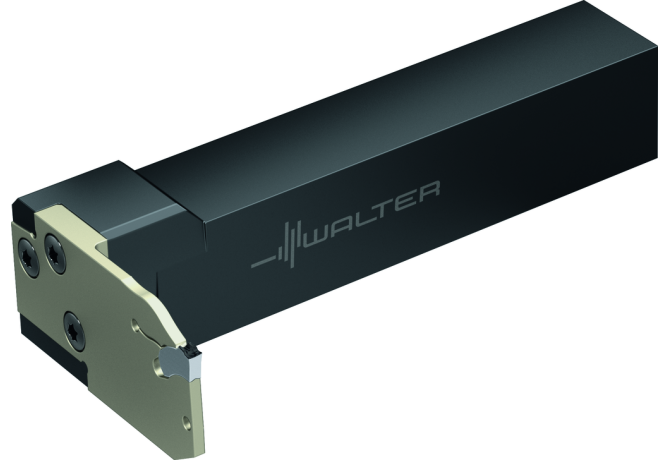

G2622.12R-3T20SX

G2622.12R-3T20SX G2622.12R-3T20SX G2622.12R-3T20SX

G2622.12R-3T20SX

Walter
Артикул: 6964777
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
20 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CW Cutting width
3 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT12120125
DIN CSW1
W-SX003000*******
FamilyProducts
Shank tool – 90° radial grooving G2622
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
19.05 mm
ID Technical product number
6964777
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01B1212$$$$
ISO CSW1
WR$$SX003000*******
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
114.9 mm
LOC-03 B Shank width
19.05 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1212
LOC-03 H Shank height
19.05 mm
LOC-03 ISO
VKT01B1212$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120125
LPR Protruding length
114.9 mm
MIID Master insert identification
SX-3
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G2622.12R-3T20SX
OAL Overall length
114.9 mm
WF Functional width
42 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.46 kg
