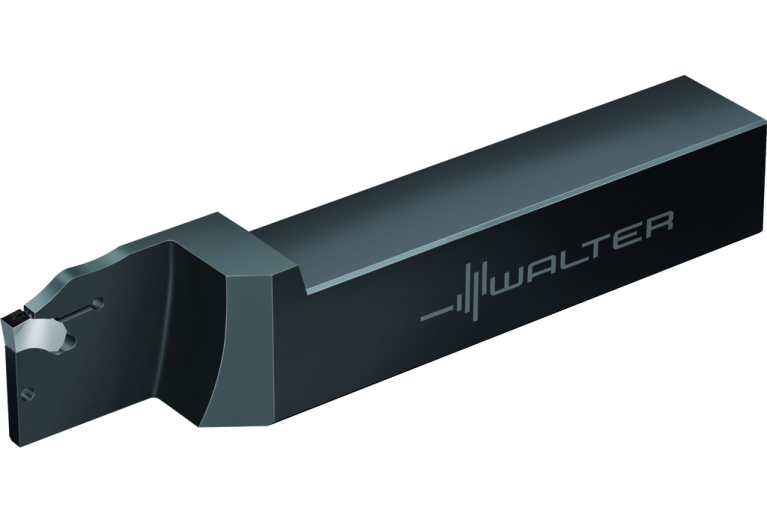

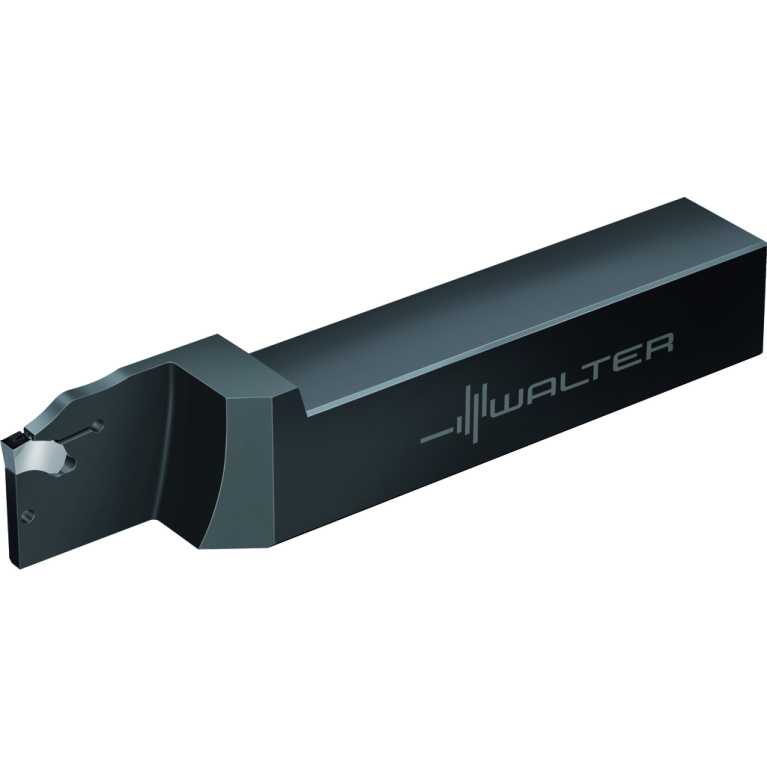

Главная Каталог продукции СЗЦПК инструмент 14 309-04 - Turning tool for OD grooving and parting G2012.10L-3T26SX-P

G2012.10L-3T26SX-P

G2012.10L-3T26SX-P G2012.10L-3T26SX-P G2012.10L-3T26SX-P G2012.10L-3T26SX-P

G2012.10L-3T26SX-P

Walter
Артикул: 6837939
В наличии
В корзину
Описание
Характеристики

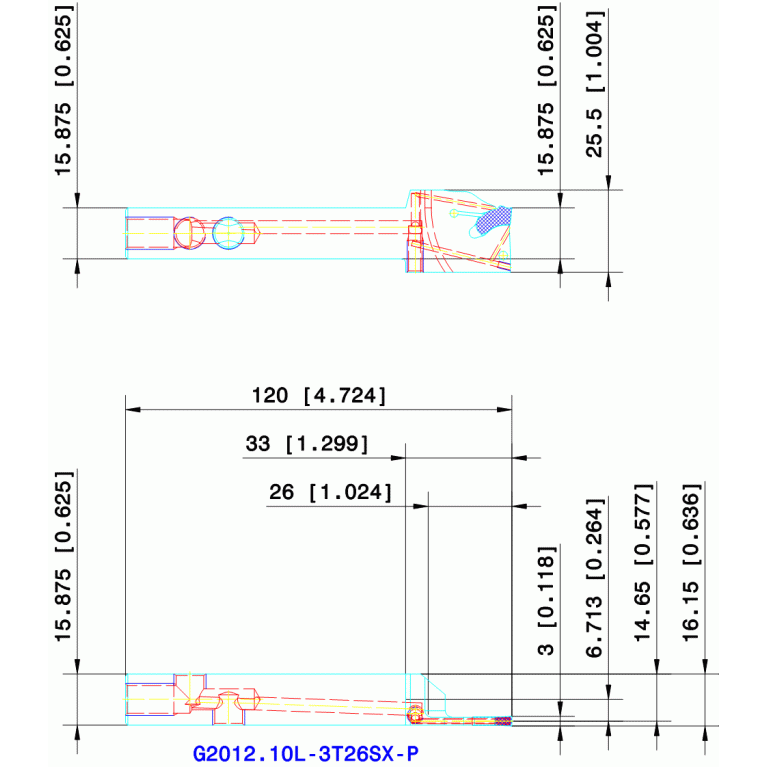

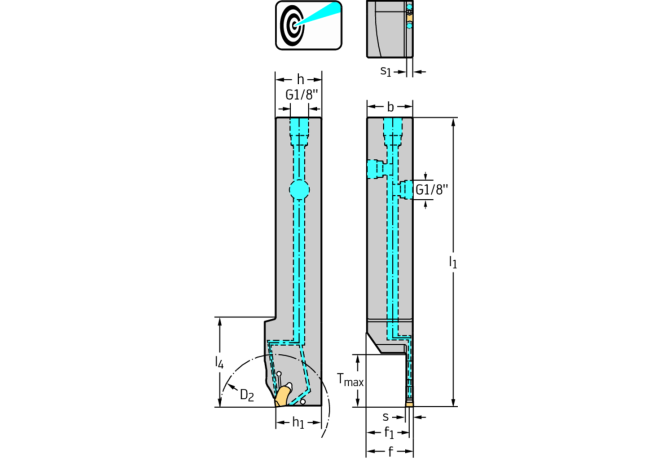

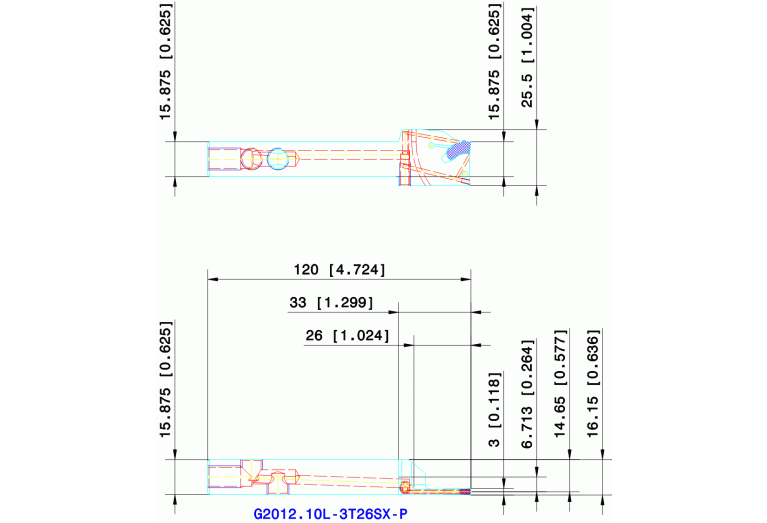

CDX Cutting depth maximum
26 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CW Cutting width
3 mm
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT10100135
DIN CSW1
W-SX003000*******
FamilyProducts
Shank tool – Radial grooving G2012...-P
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
15.875 mm
ID Technical product number
6837939
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01B1010$$$$
ISO CSW1
WR$$SX003000*******
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
120 mm
LOC-03 B Shank width
15.875 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1010
LOC-03 H Shank height
15.875 mm
LOC-03 ISO
VKT01B1010$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100135
LPR Protruding length
120 mm
MIID Master insert identification
SX-3
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G2012.10L-3T26SX-P
OAL Overall length
120 mm
WF Functional width
14.65 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.197 kg
