Главная Каталог продукции СЗЦПК инструмент 14 309-04 - Turning tool for OD grooving and parting G1521.2020L-T4GX16

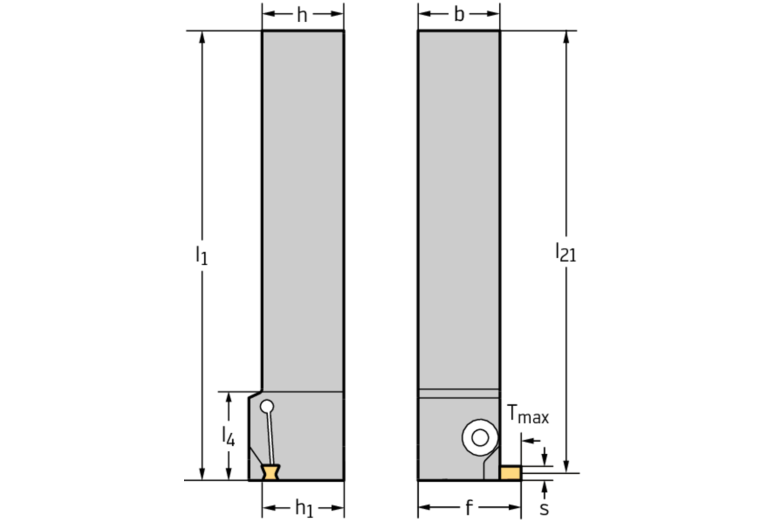

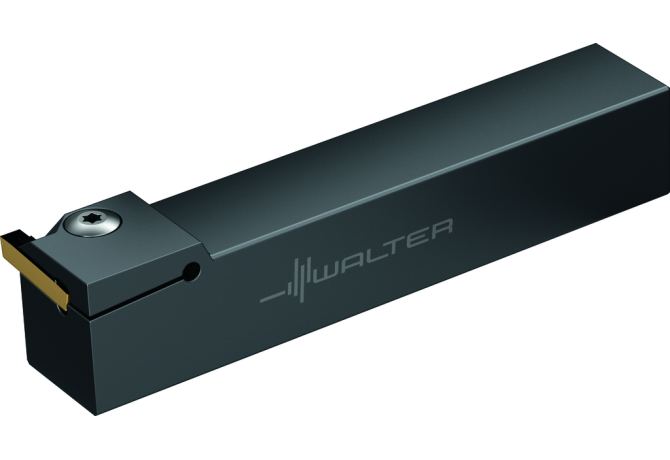

G1521.2020L-T4GX16

Артикул: 6011127

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

4 mm

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CW Cutting width

2 mm

CXSC Coolant exit style code

0 - Without coolant exit

DAXN Axial groove od min

114 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT20200105

DIN CSW1

W-GX16*******EX**

FamilyProducts

Shank tool – 90° universal G1521

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

6011127

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2020$$$$

ISO CSW1

WR$$GX16*******EX**

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

137.85 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03 ISO

VKT01A2020$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

LPR Protruding length

137.85 mm

MIID Master insert identification

GX16-X

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G1521.2020L-T4GX16

OAL Overall length

137.85 mm

WF Functional width

24.5 mm

Working process

DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,DSS - Face grooving,ESA - Cutting off

WT Weight of item

0.456 kg
