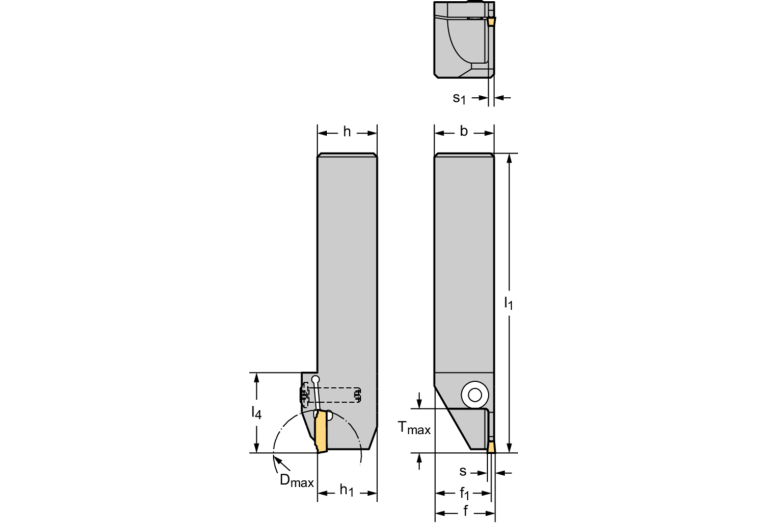

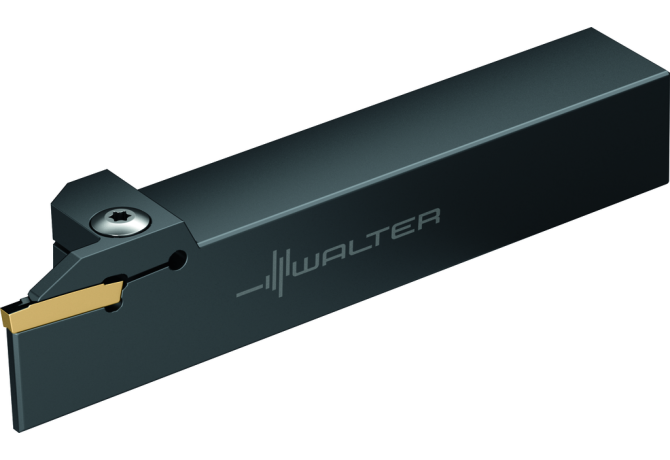

G1011.20R-6T32GX24

G1011.20R-6T32GX24 G1011.20R-6T32GX24 G1011.20R-6T32GX24

G1011.20R-6T32GX24

Walter
Артикул: 6324568
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
32 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CW Cutting width
6 mm
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT20200125
DIN CSW1
W-GX244000***EX**
FamilyProducts
Shank tool – Radial grooving G1011
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
31.75 mm
ID Technical product number
6324568
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01B2020$$$$
ISO CSW1
WR$$GX244000***EX**
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
165 mm
LOC-03 B Shank width
31.75 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
2020
LOC-03 H Shank height
31.75 mm
LOC-03 ISO
VKT01B2020$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200125
LPR Protruding length
165 mm
MIID Master insert identification
GX24-4
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G1011.20R-6T32GX24
OAL Overall length
165 mm
THSC Tool holder shape code
G - straight shank design
Working process
DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,ESA - Cutting off
WT Weight of item
1.311 kg
