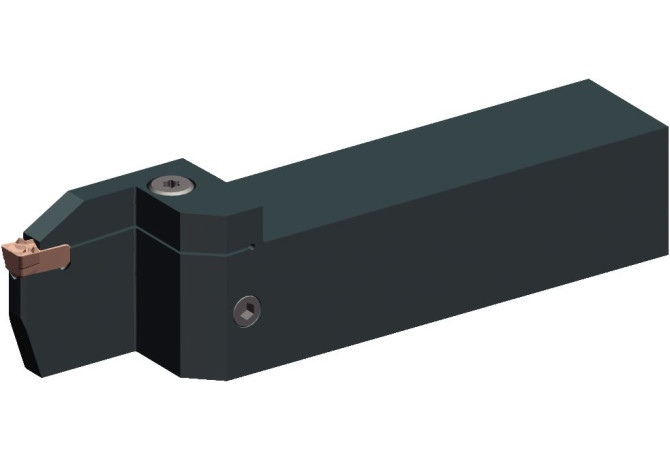

Главная Каталог продукции Toolunited 14 309-04 - Turning tool for OD grooving and parting EVSML2020K0222

EVSML2020K0222

Артикул: 5953955

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

22 mm

CEDC Cutting edge count

CNSC Coolant entry style code

5 - With coolant supply (entry) in radial direction in front of

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/2/2016

DIN

VKT20200115

DIN CSW1

KH-KGM-2

FamilyProducts

Integral Straight Toolholder, Metric

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

5953955

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LF Functional length

125 mm

LH Head length

38 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200115

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

EVSML2020K0222

OAL Overall length

125 mm

SX Shank cross section shape code

01 - Square shank

WF Functional width

19 mm

Working process

DEA - Outer diameter grooving,DGA - Thread turning, external
