231660 34
231660 34
Артикул:
231660 34
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ALTIN/TISIXN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit

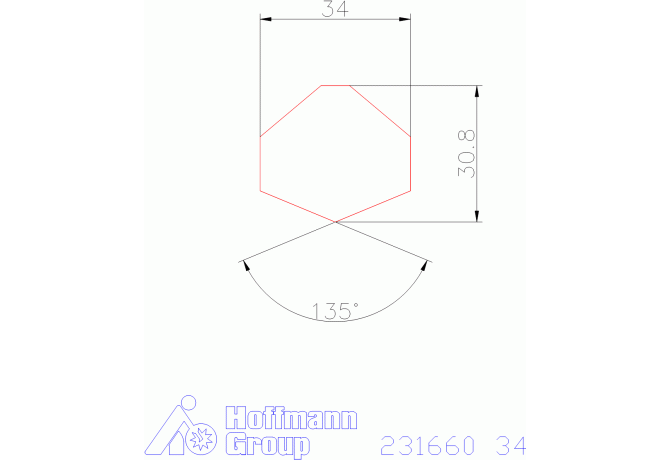

DC Cutting diameter
34 mm
Delivery state valid from
1/11/2017
DIN
HOG-2316 xx 340
FamilyProducts
GARANT HiPer drill cutter insert m7
GRDMFG Grade manufacturers designation
HB7725
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
203-03 - Replaceable insert flatted with chip flute
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HOG-2316 xx 340
Name Identifying order number
231660 34
NOF Flute count
2
OAL Overall length
30.8 mm
PL Point length
7.04 mm
S1 Insert thickness total
12.2 mm
SIG Point angle 1st step
135 Degree
Working process
BVB - Drilling
WT Weight of item
8.515 kg
