PTL06-2,25D LC630T

PTL06-2,25D LC630T PTL06-2,25D LC630T

PTL06-2,25D LC630T

Boehlerit
Артикул: 6410466
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
BK - Boehlerit
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/5/2005
DIN
ZYL00801005
FamilyProducts

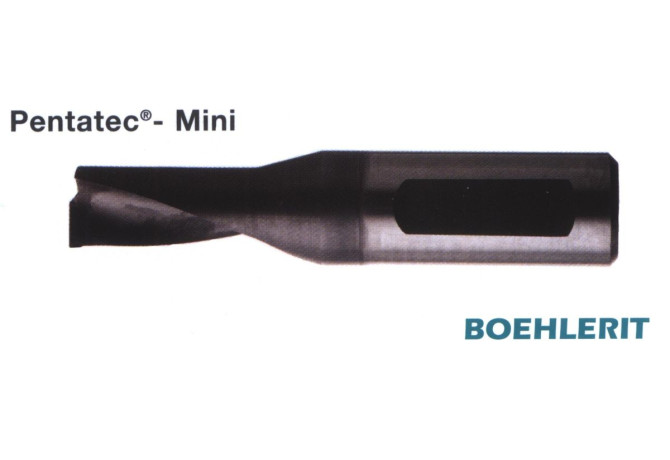

Pentatec-Mini
FHH Flute helix hand
L - Hand of helix left
GEP Guide element property
0 - Without guide elements
GPP Guide pilot
0 - Without pilot
GRDMFG Grade manufacturers designation
LC630T
HAND Cutting direction
L - Left
ID Technical product number
6410466
Interface codes
J6 /
ISYC Subclass
302-00 - Drill unspecified
LCF Length chip flute
13.5 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005
LU Usable length
13.5 mm
Name Identifying order number
PTL06-2,25D LC630T
NOF Flute count
1
NOS Step count
1
OAL Overall length
38 mm
PL Point length
0 mm
Working process
BVB - Drilling,DDI - Internal turning
