Главная Каталог продукции Toolunited 14 302-01 - Twist Drill SHD0280/0.110/501HA HCT600

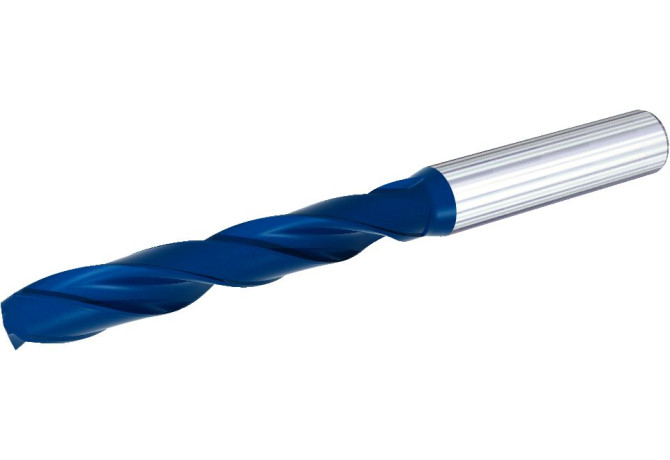

SHD0280/0.110/501HA HCT600

SHD0280/0.110/501HA HCT600 SHD0280/0.110/501HA HCT600

SHD0280/0.110/501HA HCT600

Kennametal
Артикул: 5665621
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
2.7991 mm
DCONMSLD Shank diameter lower limit
-0.008 mm
DCONMSUD Shank diameter upper limit
0 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
5/5/2017
DIN
ZYL02360125
FamilyProducts
Stellram HardCore Drill, SHD 501HA, 5 x D
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HCT600
HAND Cutting direction
R - Right
ID Technical product number
5665621
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
27.94 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0236
LOC-03 DCONMS Diameter
5.9944 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02360125
LS Shank length
35.9918 mm
LU Usable length
23.114 mm
Materials
P,K,H
Name Identifying order number
SHD0280/0.110/501HA HCT600
NOF Flute count
2
OAL Overall length
66.04 mm
PL Point length
0.508 mm
SIG Point angle 1st step
140 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
