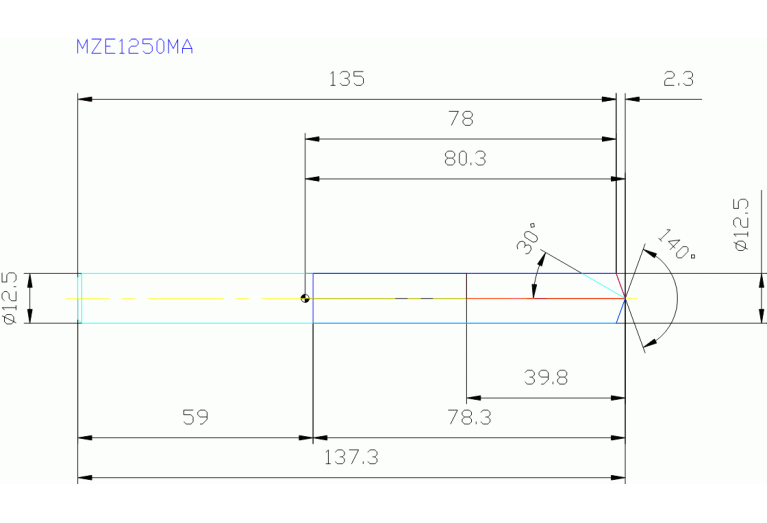

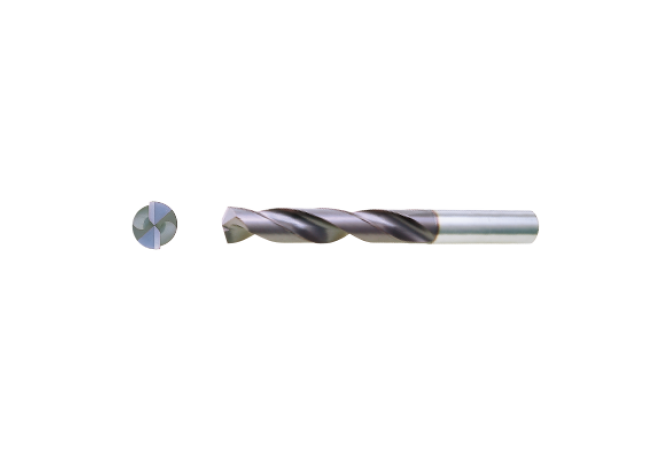

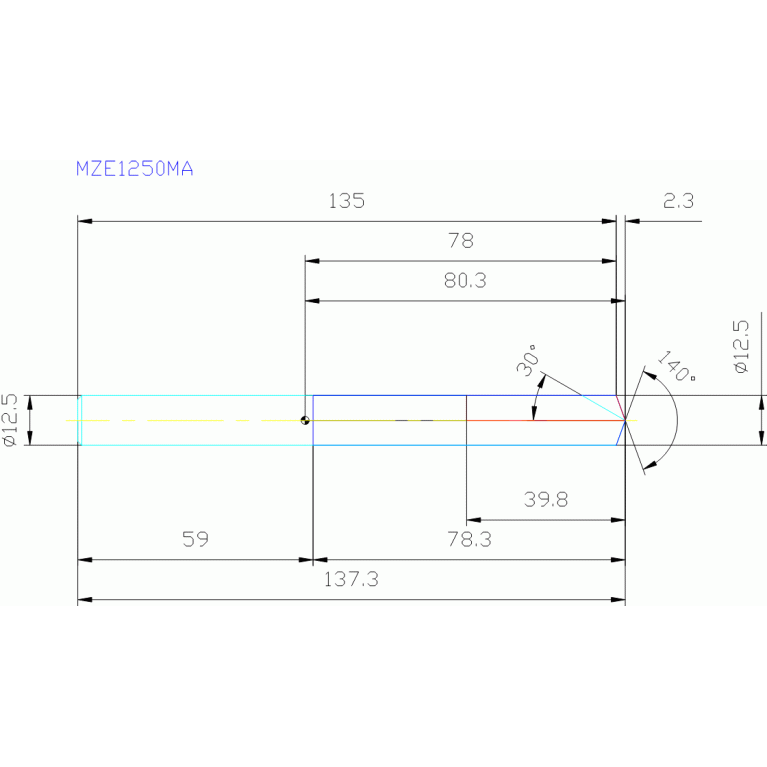

MZE1250MA VP15TF

Артикул: 183812

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

(Al,Ti)N

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL01250105

FamilyProducts

VOLLHARTMETALL

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VP15TF

HAND Cutting direction

R - Right

ID Technical product number

183812

Interface codes

J6 / J61

ISO

ZYL01G1250h$08

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

78.3 mm

LF Functional length

135 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

12.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$08

LOC-03 ISO

ZYL01G1250h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250105

LPR Protruding length

80.3 mm

LS Shank length

59.03 mm

LU Usable length

39.8 mm

Name Identifying order number

MZE1250MA VP15TF

NOF Flute count

OAL Overall length

137.3 mm

PL Point length

2.3 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
