Главная Каталог продукции Toolunited 14 302-01 - Twist Drill MMS1548X3D160 DP7020

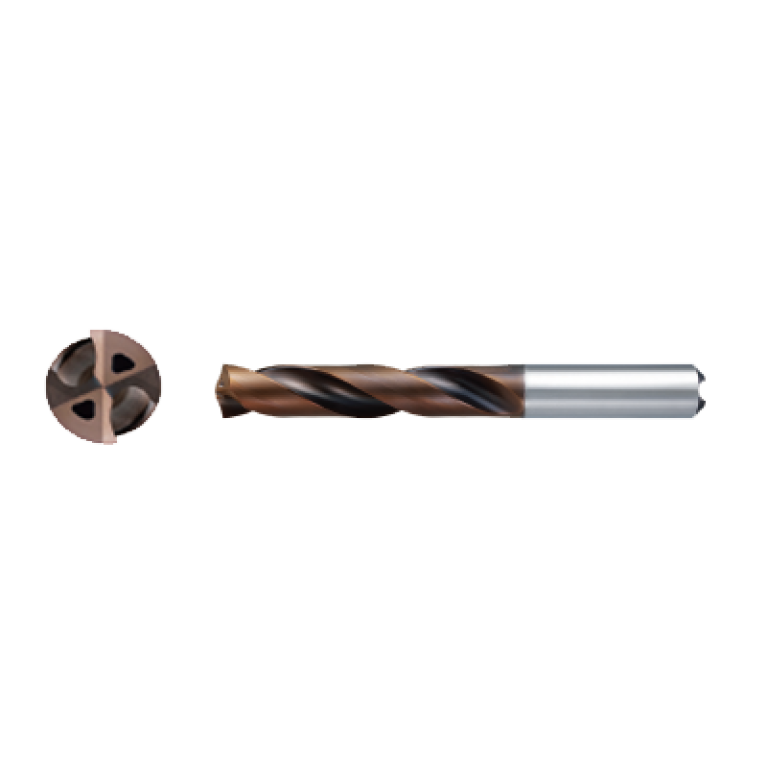

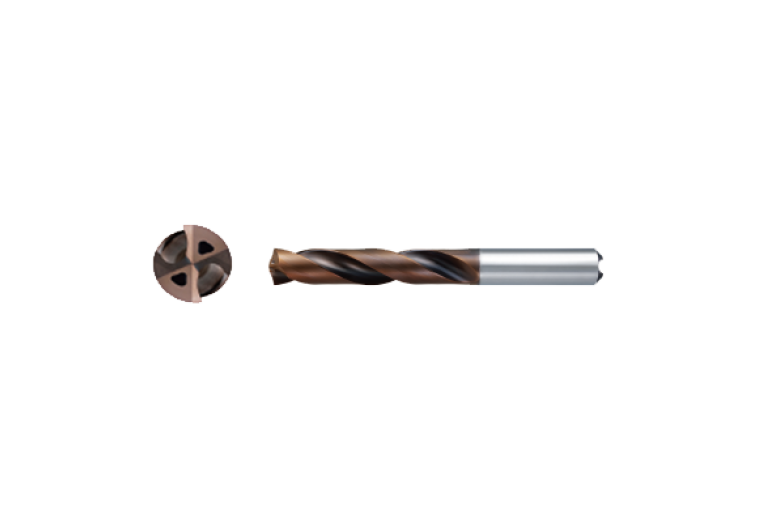

MMS1548X3D160 DP7020

Артикул: 601640

В наличии

В корзину

Описание

Характеристики

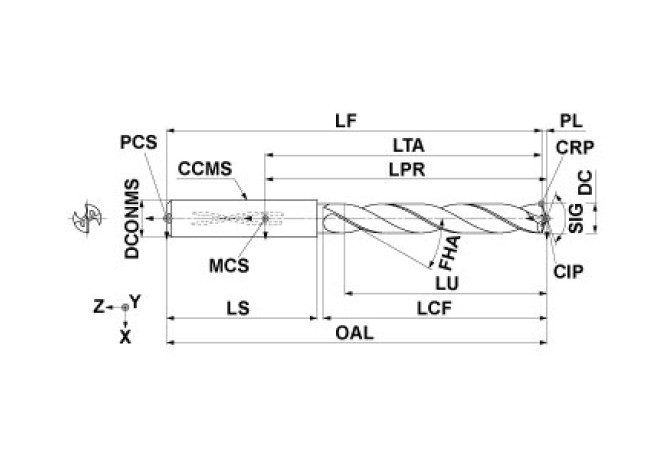

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

TiN/AlTiN

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

15.479 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL06300135

FamilyProducts

Solid carbide drill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

DP7020

HAND Cutting direction

R - Right

ID Technical product number

601640

Interface codes

J6 / J61

ISO

ZYL01R6300h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

80.823 mm

LF Functional length

138.989 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

16.002 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01R6300h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06300135

LPR Protruding length

84.811 mm

LS Shank length

59.004 mm

LU Usable length

49.251 mm

Name Identifying order number

MMS1548X3D160 DP7020

NOF Flute count

OAL Overall length

141.808 mm

PL Point length

2.819 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
