Главная Каталог продукции Toolunited 14 302-01 - Twist Drill MLD0300-25D PC205F

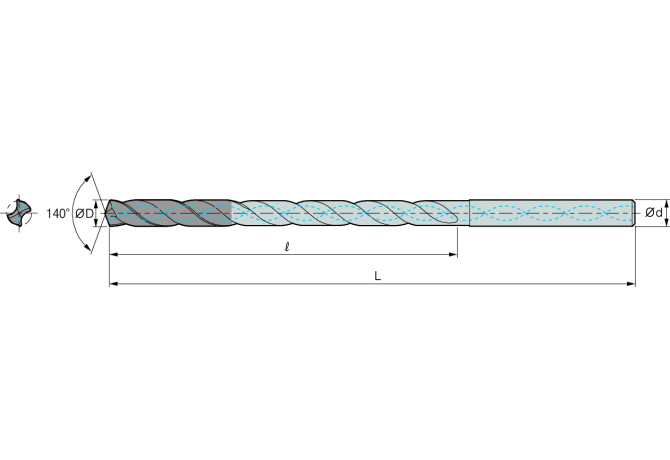

MLD0300-25D PC205F

Артикул: 1-04-013312

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

TiAlN

COMPC Company code

KOR - Korloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/4/2014

DIN

ZYL00300115

FamilyProducts

MLD (Mach long Drills)

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

PC205F

GRDSYC Grind style code

KOR-X type

HAND Cutting direction

R - Right

ID Technical product number

1-04-013312

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

75 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300115

LPR Protruding length

75 mm

Name Identifying order number

MLD0300-25D PC205F

NOF Flute count

OAL Overall length

120 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
