Главная Каталог продукции Toolunited 14 302-01 - Twist Drill MHS0620L150B VP15TF

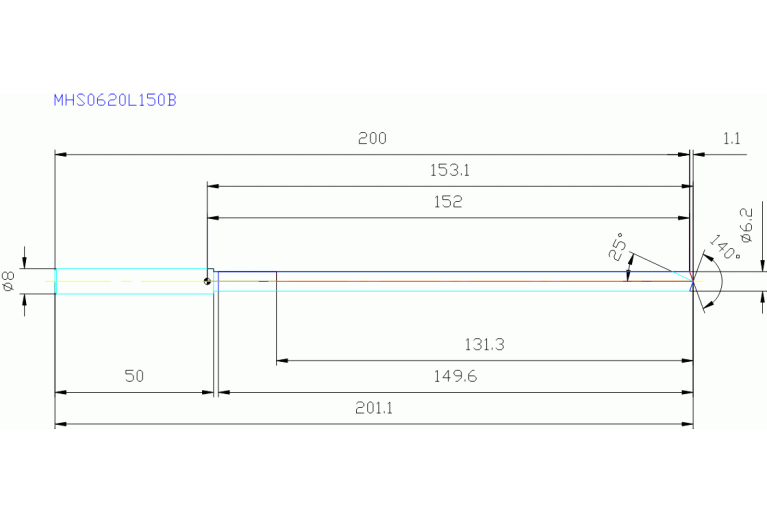

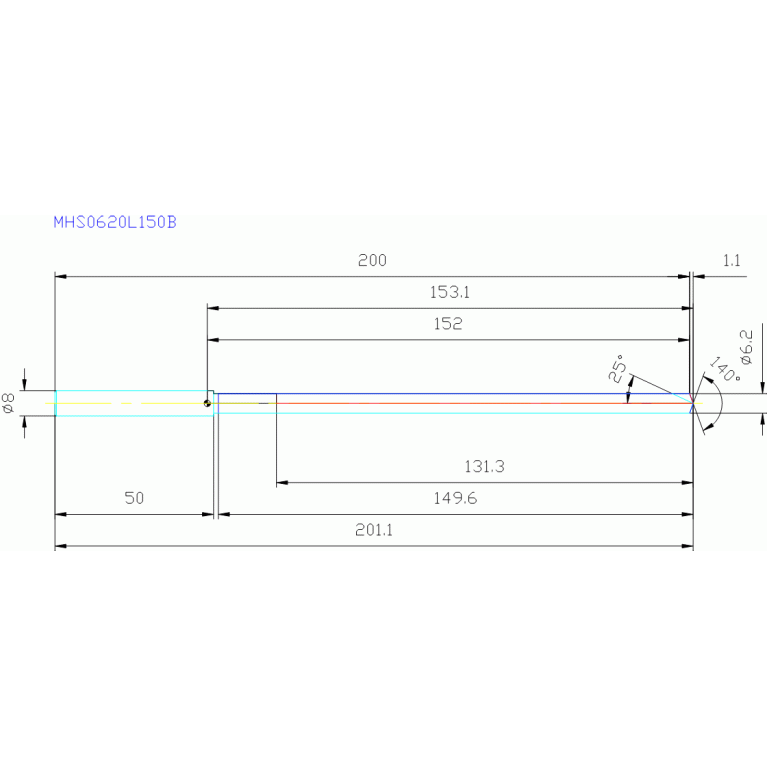

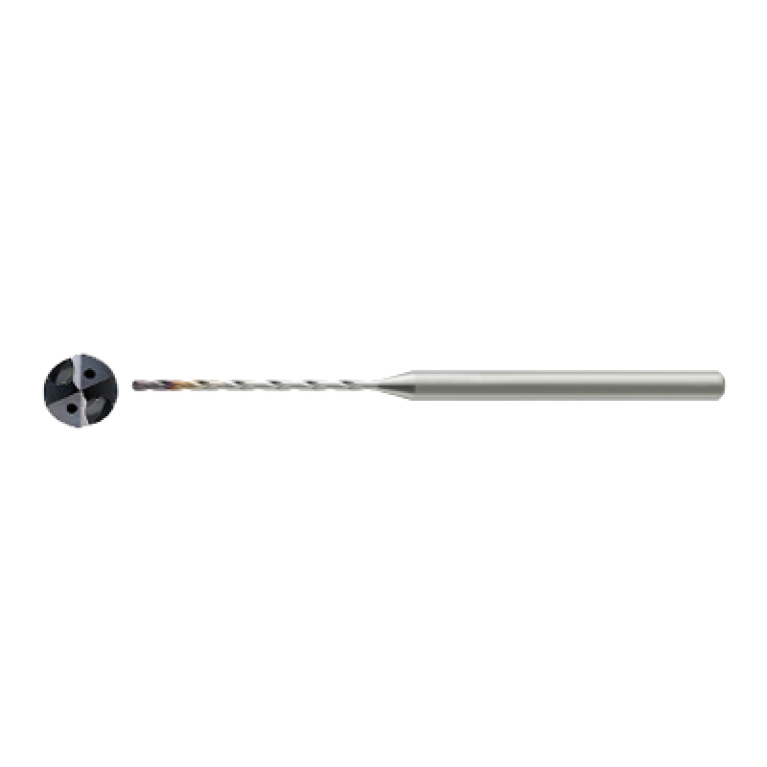

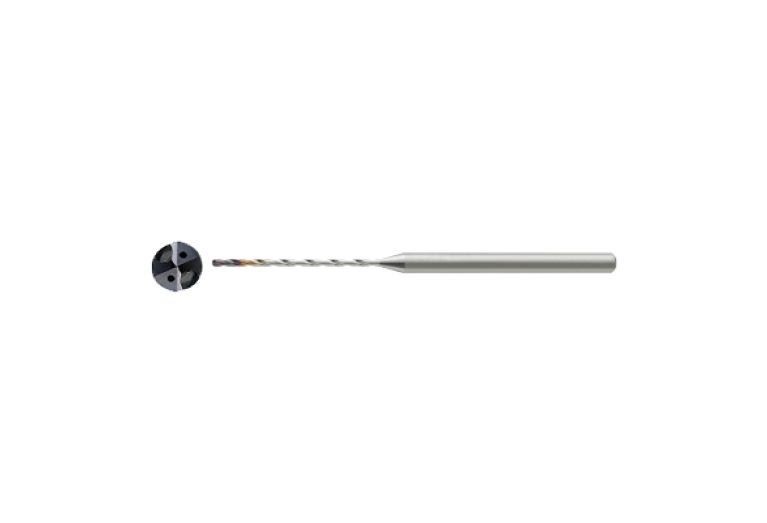

MHS0620L150B VP15TF

Артикул: 477722

В наличии

В корзину

Описание

Характеристики

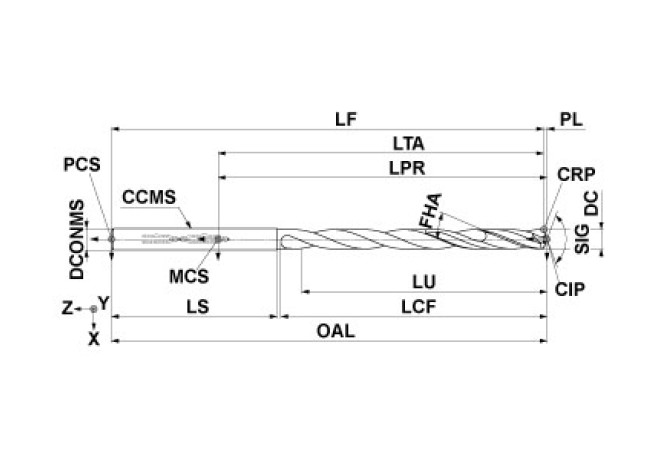

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COATN Coating / Покрытие

(Al,Ti)N

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

6.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL00800115

FamilyProducts

Solid carbide drill

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VP15TF

HAND Cutting direction

R - Right

ID Technical product number

477722

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

149.6 mm

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01F8000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

153.1 mm

LS Shank length

50 mm

LU Usable length

131.3 mm

Name Identifying order number

MHS0620L150B VP15TF

NOF Flute count

OAL Overall length

201.1 mm

PL Point length

1.1 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
