Главная Каталог продукции Toolunited 14 302-01 - Twist Drill MGS0140L100B HTi10

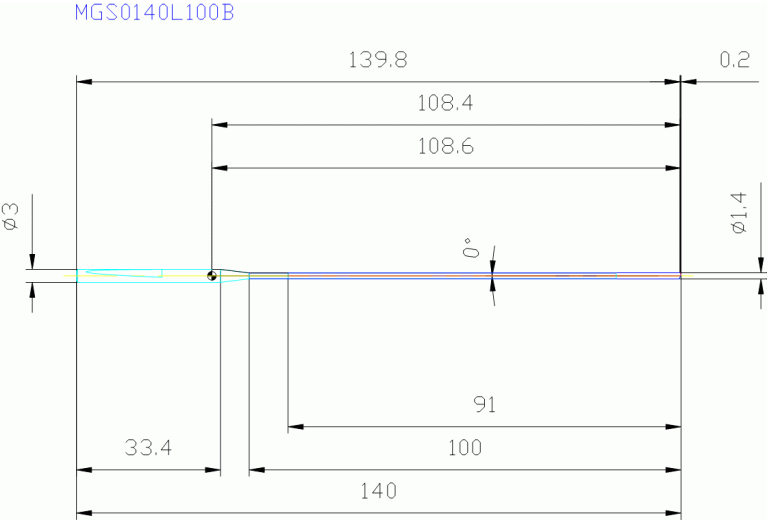

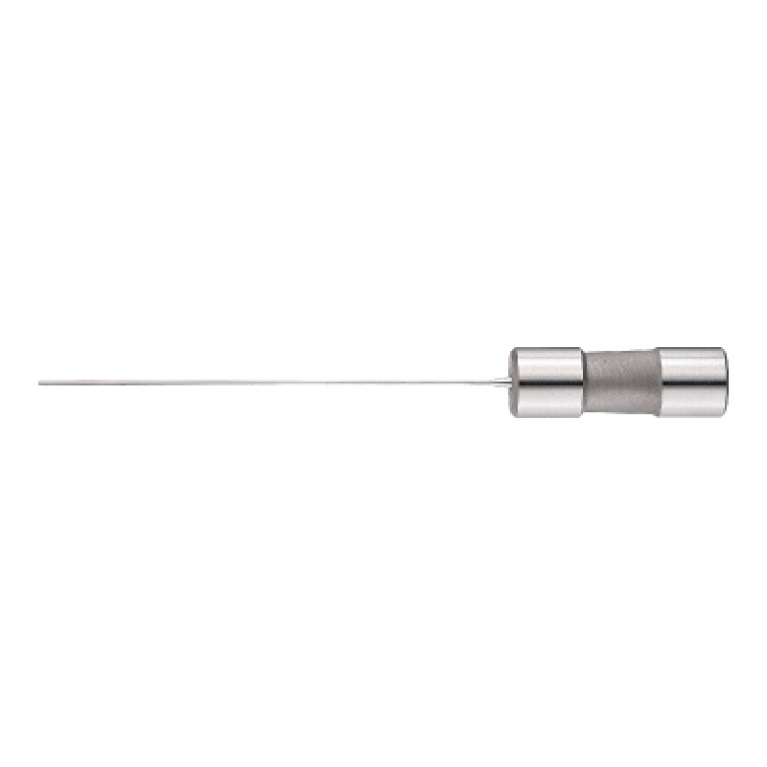

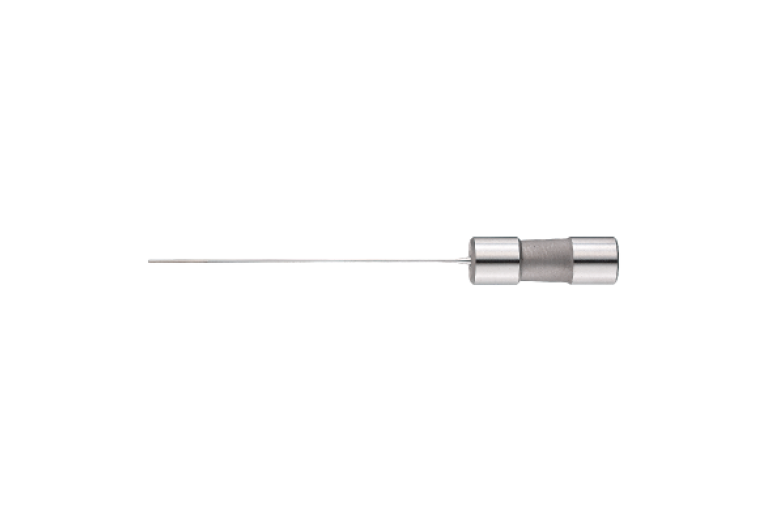

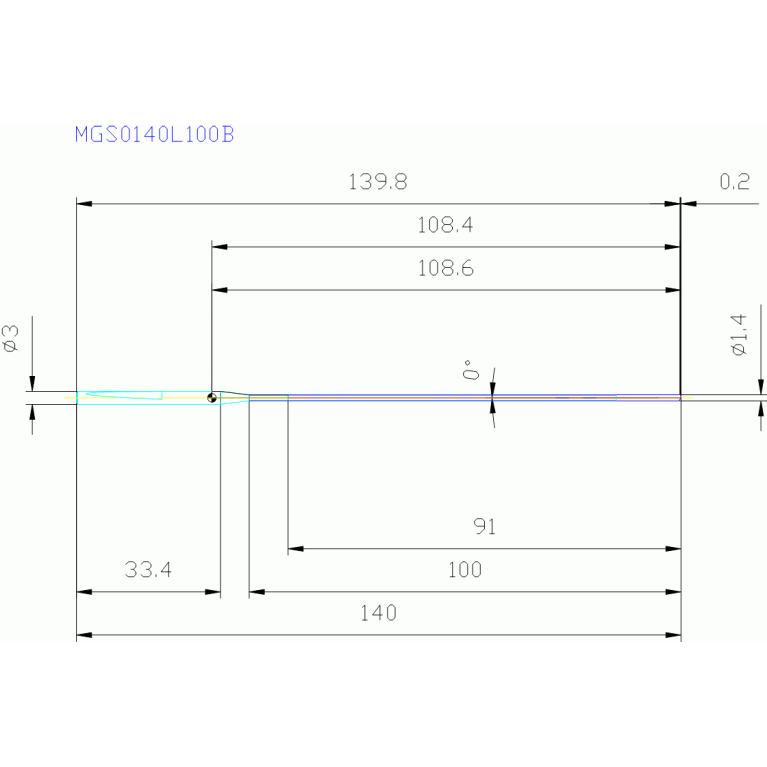

MGS0140L100B HTi10

Артикул: 426845

В наличии

В корзину

Описание

Характеристики

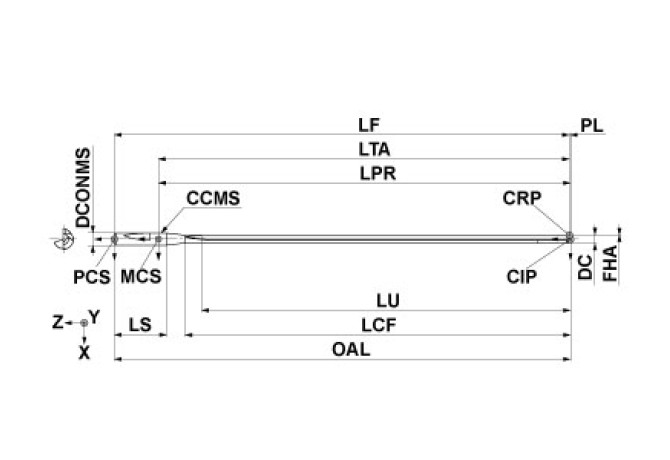

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

1.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DIN

ZYL00301315

FamilyProducts

Solid carbide

GRDMFG Grade manufacturers designation

HTi10

HAND Cutting direction

R - Right

ID Technical product number

426845

Interface codes

J6 / J61

ISO

ZYL13F3000h$06

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

100 mm

LF Functional length

139.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL13F3000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00301315

LPR Protruding length

108.64 mm

LS Shank length

33.36 mm

LU Usable length

91 mm

Name Identifying order number

MGS0140L100B HTi10

NOF Flute count

OAL Overall length

140 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
