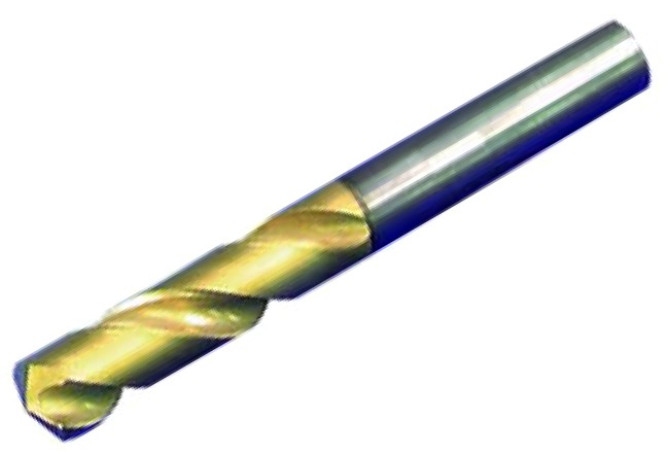

Главная Каталог продукции Toolunited 14 302-01 - Twist Drill MDS7344MP

MDS7344MP

Артикул: MDS7344MP

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

TiN

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

18.6538 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/25/2009

DIN

ZYL07340125

FamilyProducts

Sumitomo MULTI-DRILL MDS-P for steels and GGG

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

GAC30

GRDPRIO Standard designation of the grade main application

HC-P30

HAND Cutting direction

R - Right

ID Technical product number

MDS7344MP

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

113.8936 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0734

LOC-03 DCONMS Diameter

18.6538 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07340125

LPR Protruding length

113.8936 mm

LS Shank length

65.1002 mm

Name Identifying order number

MDS7344MP

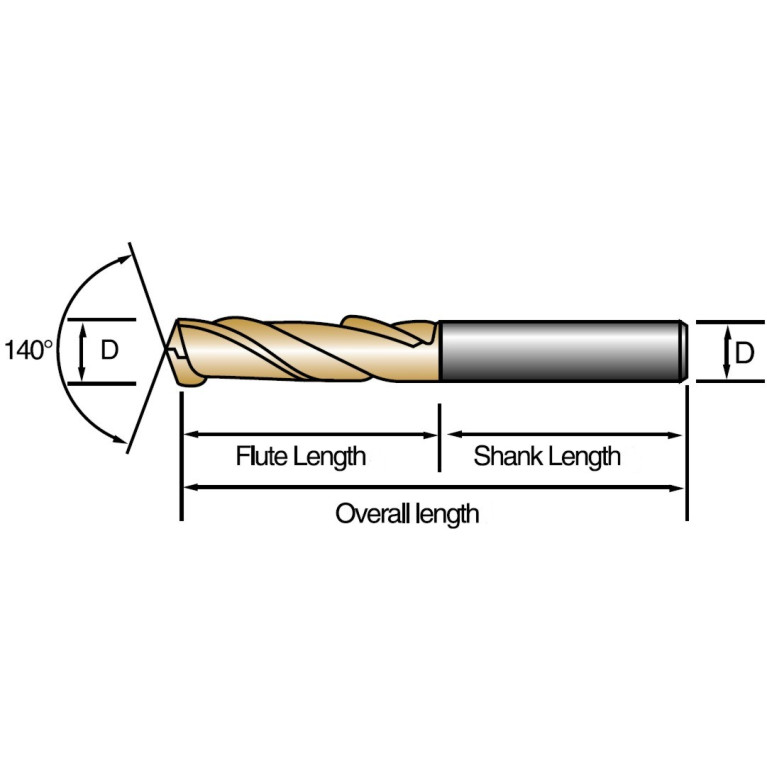

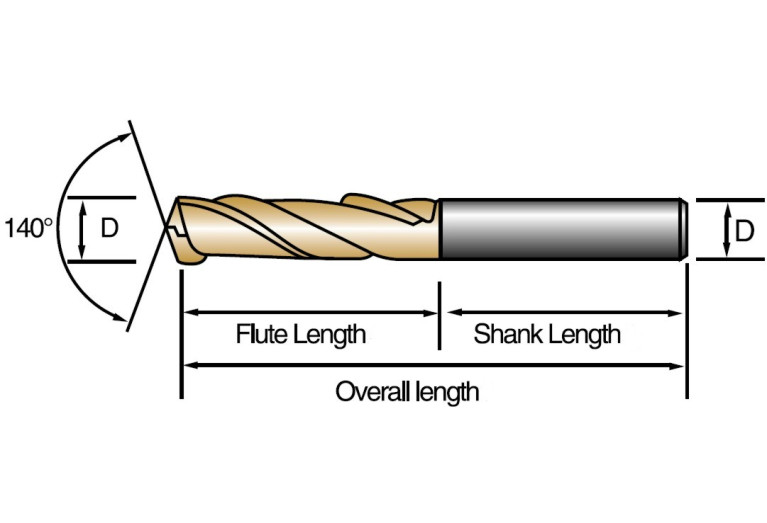

OAL Overall length

178.9938 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
