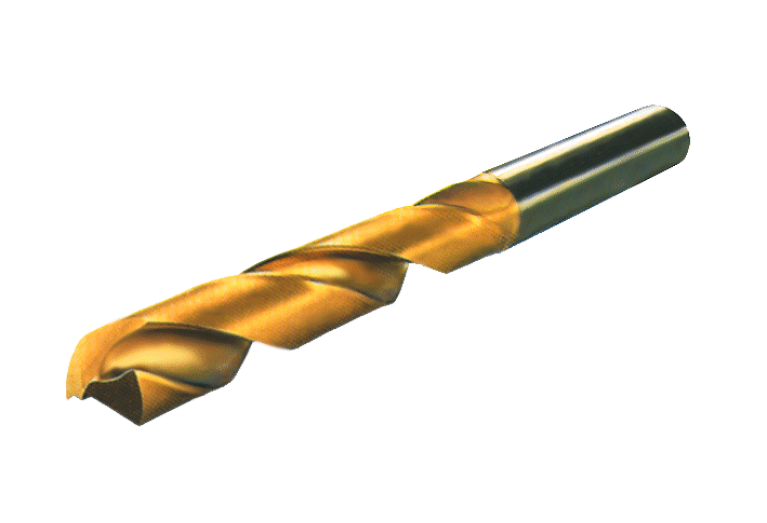

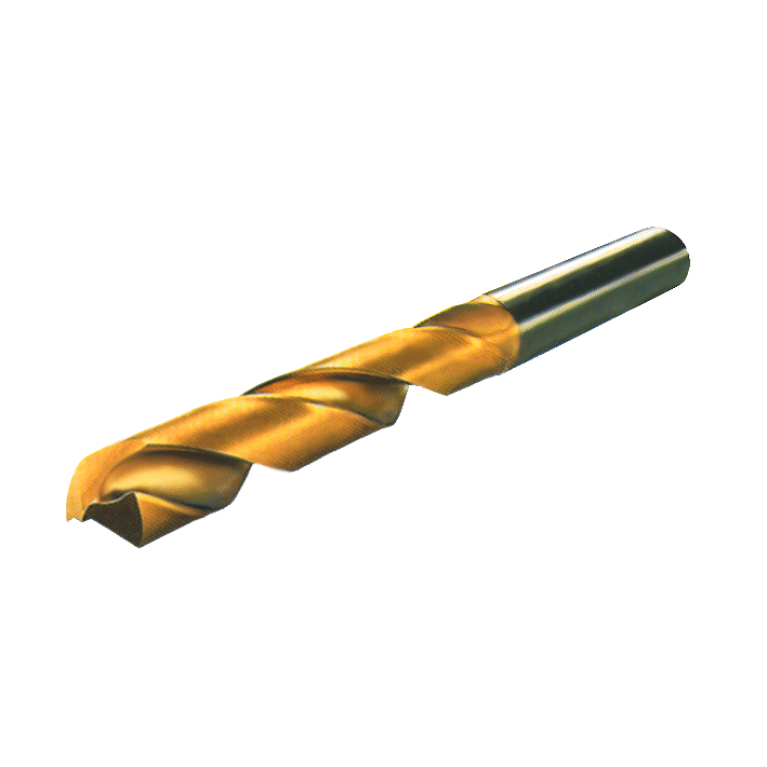

MDS 145 MP

Артикул: MDS 145 MP

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiN

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

14.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/25/2009

DIN

ZYL01450105

FamilyProducts

Sumitomo MULTI-DRILL MDS-P for steels and GGG

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRDMFG Grade manufacturers designation

GAC30

GRDPRIO Standard designation of the grade main application

HC-P30

HAND Cutting direction

R - Right

ID Technical product number

MDS 145 MP

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

91.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0145

LOC-03 DCONMS Diameter

14.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01450105

LS Shank length

62 mm

LU Usable length

91.6 mm

Name Identifying order number

MDS 145 MP

OAL Overall length

153.6 mm

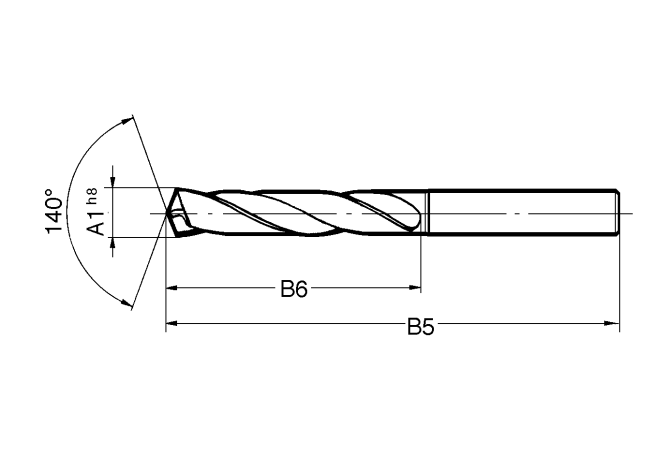

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
