MDS 144 ME

Артикул: MDS 144 ME

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiN

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

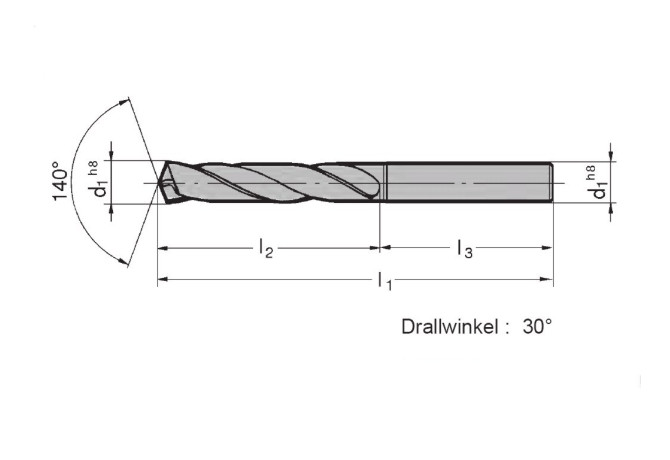

DC Cutting diameter minimum

14.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2006

DIN

ZYL01440105

FamilyProducts

Sumitomo MULTI-DRILL MDS-E for stainless steels

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-K20

GRDMFG Grade manufacturers designation

GAC50

GRDPRIO Standard designation of the grade main application

HC-M20

HAND Cutting direction

R - Right

ID Technical product number

MDS 144 ME

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

91.6 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0144

LOC-03 DCONMS Diameter

14.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01440105

LS Shank length

62 mm

LU Usable length

91.6 mm

Name Identifying order number

MDS 144 ME

OAL Overall length

153.6 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
