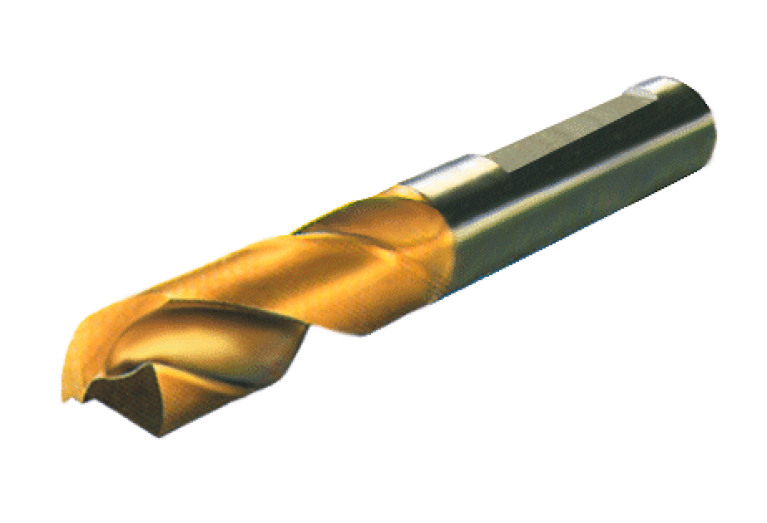

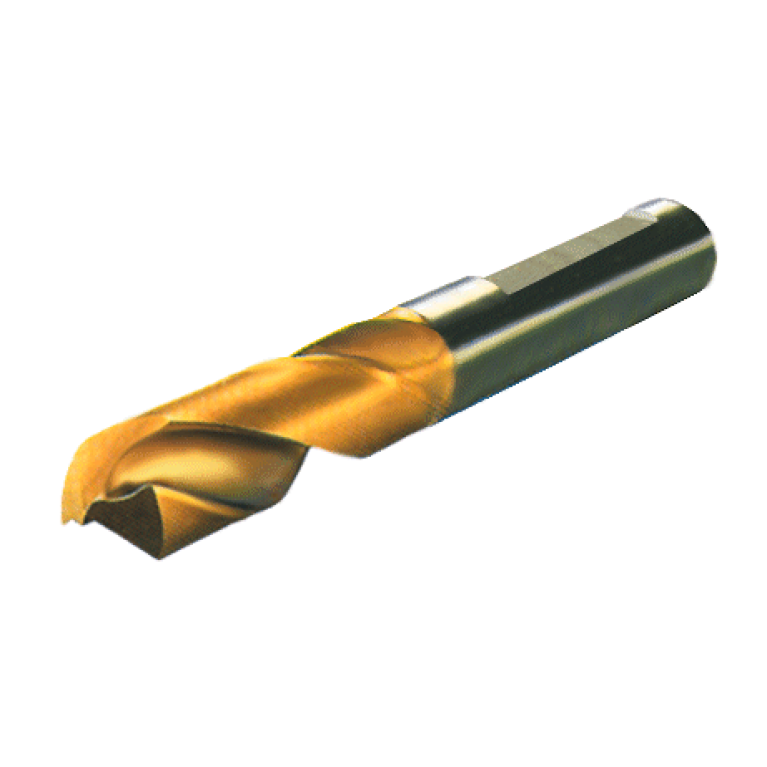

MDS 143 SP HE
MDS 143 SP HE
Артикул:
MDS 143 SP HE
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiN
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
0 - Without coolant exit

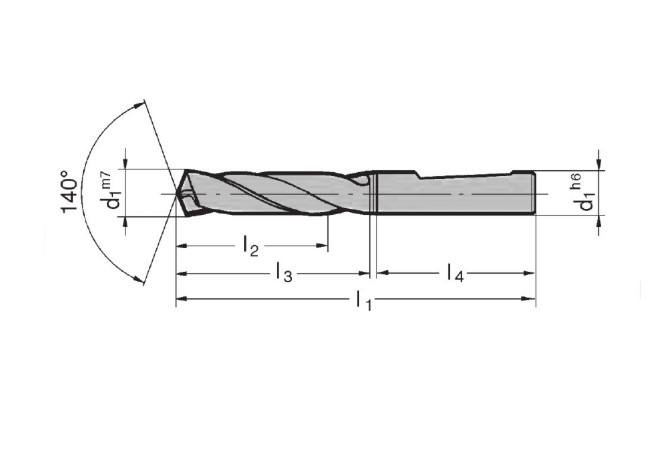

DC Cutting diameter minimum
14.3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2006
DIN
ZYL01601305
FamilyProducts
Sumitomo MULTI-DRILL MDS-PHEK/DIN6537 for m7
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GRD2ND Standard designation of the grade 2nd application
HC-K20
GRD3RD Standard designation of the grade 3rd application
HC-K20
GRDMFG Grade manufacturers designation
GAC30
GRDPRIO Standard designation of the grade main application
HC-P30
HAND Cutting direction
R - Right
ID Technical product number
MDS 143 SP HE
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
65 mm
LOC-03 CCFMS Form
13
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601305
LS Shank length
48 mm
LU Usable length
45 mm
Name Identifying order number
MDS 143 SP HE
OAL Overall length
115 mm
SIG Point angle 1st step
140 Degree
STDNO Standard
DIN 6537
Working process
BVB - Drilling
