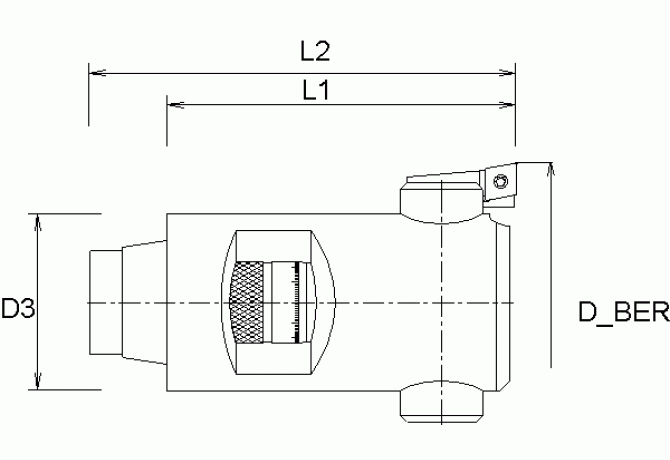

KR63SVS8B126M

Артикул: KR63SVS8B126M

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2017

DIN

KRS06300195

FamilyProducts

ROMICRON SVS BORING HEAD - KR

Interface codes

J6 /

ISYC Subclass

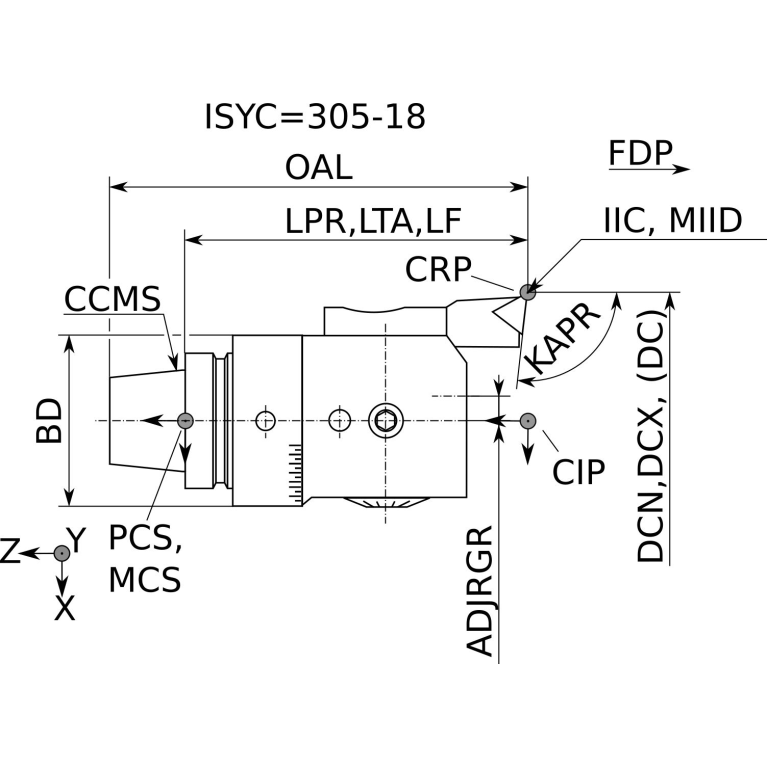

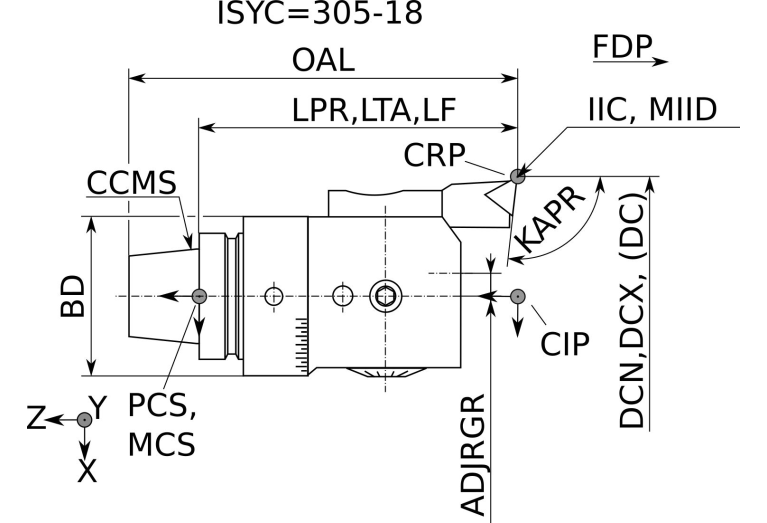

305-18 - Boring head with adjustable unit

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KRS KM Romicron System KENNAMETAL

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KRS06300195

LPR Protruding length

162 mm

Name Identifying order number

KR63SVS8B126M

OAL Overall length

126 mm

Working process

No working processes available

WT Weight of item

7.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

Максимальный диаметр корпуса (BDX) / Body diameter maximum (BDX)

85 mm
