Главная Каталог продукции Toolunited 13 305-18 - Boring head with adjustable unit KM40FBHS4090

KM40FBHS4090

Артикул: KM40FBHS4090

В наличии

В корзину

Описание

Характеристики

BDX Body diameter maximum

32 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCN Cutting diameter minimum

40 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

51 mm

Delivery state valid from

1/4/2017

DIN

KH-KMMBFFKM40

DIN CSW1

KH-WP CCGX0602

FamilyProducts

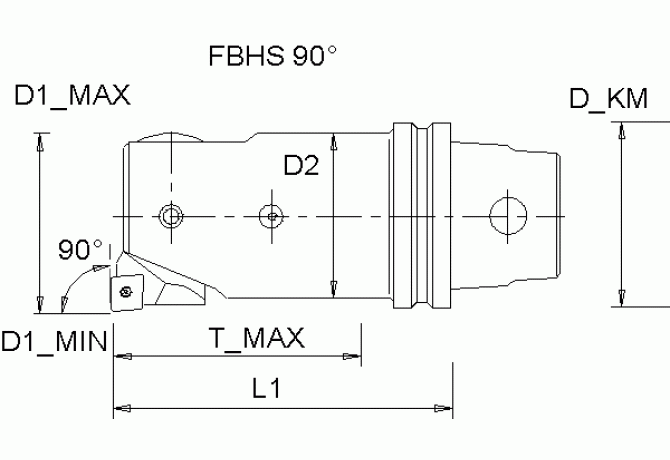

KM SINGLE CUTTER FINE BORING

HAND Cutting direction

R - Right

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

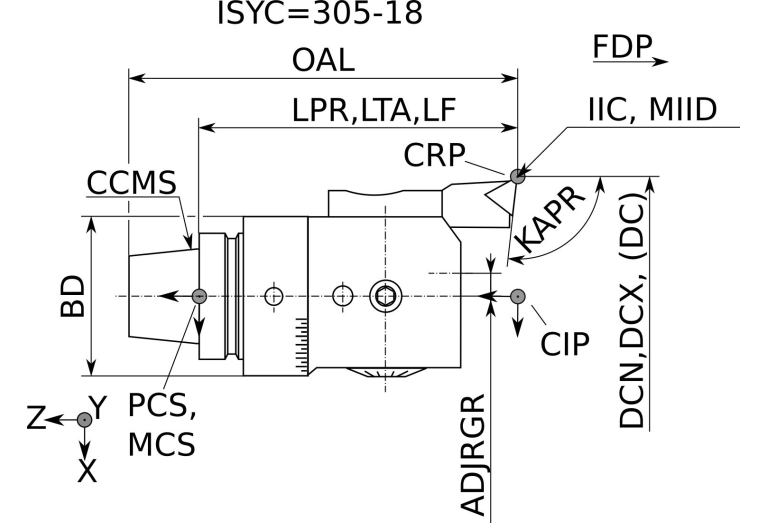

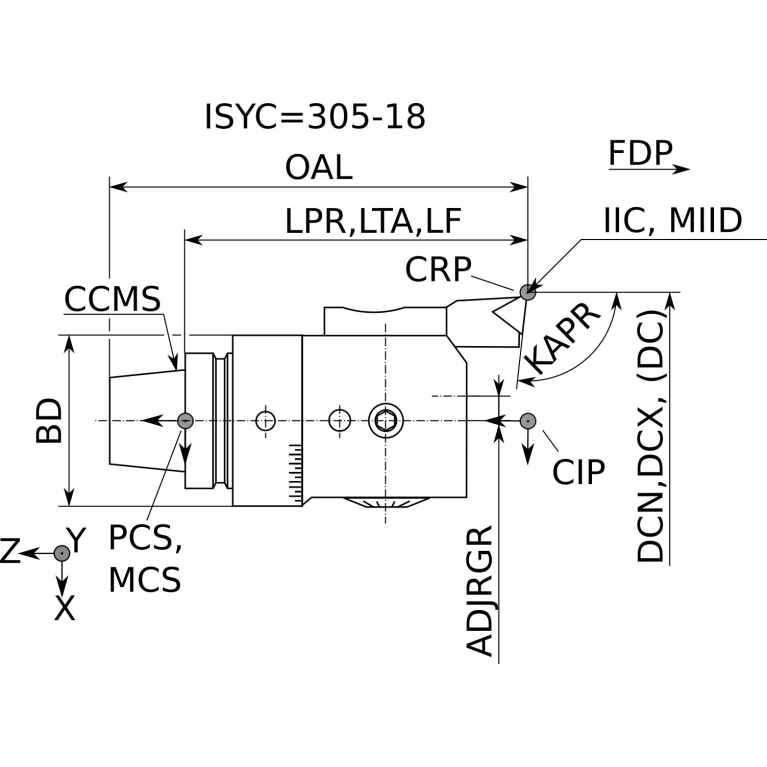

305-18 - Boring head with adjustable unit

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

KH-WP CCGX0602

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

KH-WP SC CCGT0602

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-KMMBFFKM40

LPR Protruding length

90 mm

Name Identifying order number

KM40FBHS4090

RPMX Rotational speed maximum

90 1/min

Working process

No working processes available

WT Weight of item

0.84 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
