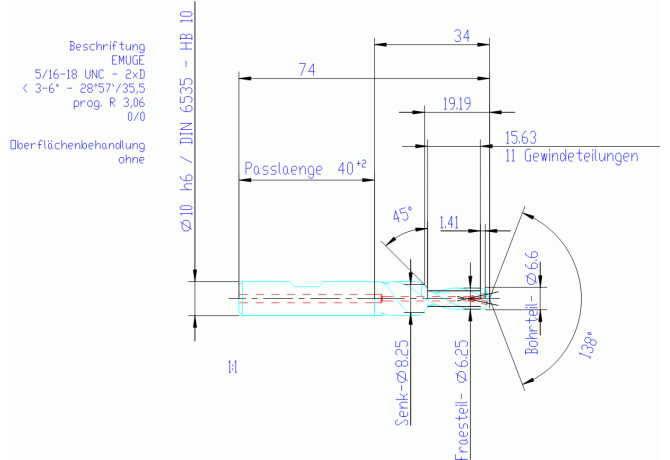

Главная Каталог продукции Toolunited 13 303-11 - Thread end mill with drilling part GF432201.5010

GF432201.5010

GF432201.5010 GF432201.5010

GF432201.5010

Emuge
Артикул: GF432201.5010
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
E - Emuge
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
6.25 mm
Delivery state valid from
2/1/2024
DIN
ZYL01001015
FamilyProducts
carbide drill thread mill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
54 mm
LH Head length
18.3 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01001015
LPR Protruding length
34 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
GF432201.5010
OAL Overall length
74 mm
PRFA Profile included angle
138 Degree
TDIN Thread diameter nominal inch
7.938 in
THFT Thread form type
UNC
TP Thread pitch
1.411 mm
TPI Threads per inch
18 1/in
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.056 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
