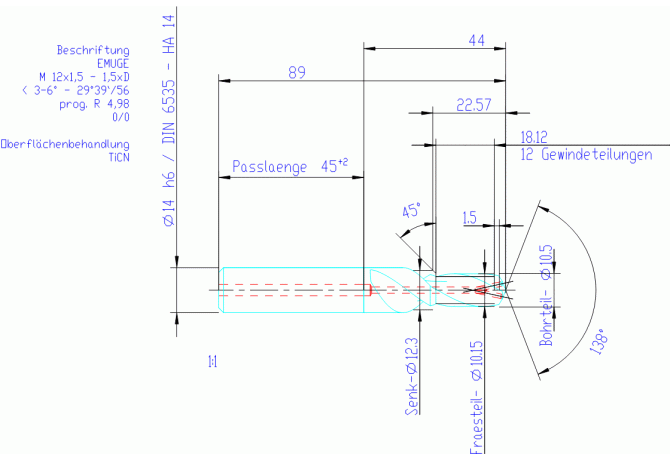

Главная Каталог продукции Toolunited 13 303-11 - Thread end mill with drilling part GF422806.0303

GF422806.0303

GF422806.0303 GF422806.0303

GF422806.0303

Emuge
Артикул: GF422806.0303
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating
TiCN
COMPC Company code
E - Emuge
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
10.15 mm
Delivery state valid from
2/1/2024
DIN
ZYL01400115
FamilyProducts
carbide drill thread mill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM-TiCN
GRDPRIO Standard designation of the grade main application
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LH Head length
21.6 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01400115
LPR Protruding length
44 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
GF422806.0303
OAL Overall length
89 mm
PRFA Profile included angle
138 Degree
TD Thread diameter
12 mm
THFT Thread form type
MF
TP Thread pitch
1.5 mm
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.145 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
