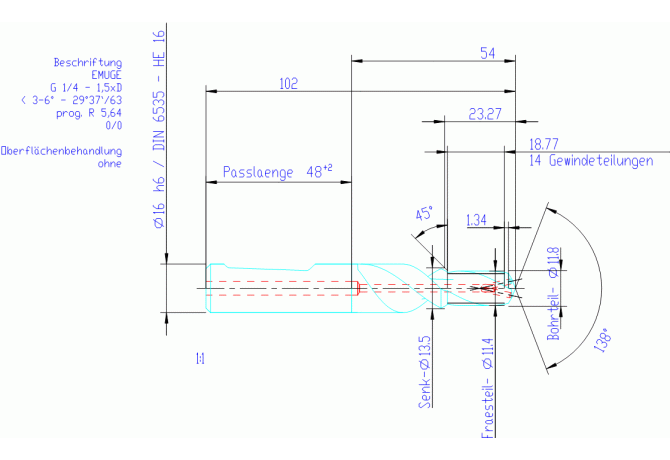

Главная Каталог продукции Toolunited 13 303-11 - Thread end mill with drilling part GF422501.4036

GF422501.4036

GF422501.4036 GF422501.4036

GF422501.4036

Emuge
Артикул: GF422501.4036
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
E - Emuge
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
11.4 mm
Delivery state valid from
2/1/2024
DIN
ZYL01601315
FamilyProducts
carbide drill thread mill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
102 mm
LH Head length
22.4 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601315
LPR Protruding length
54 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
GF422501.4036
OAL Overall length
102 mm
PRFA Profile included angle
138 Degree
TDIN Thread diameter nominal inch
13.157 in
THFT Thread form type
G
TP Thread pitch
1.337 mm
TPI Threads per inch
19 1/in
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.202 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
