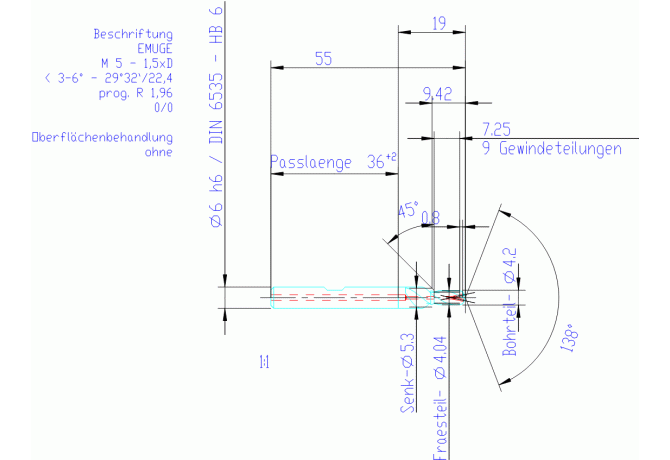

Главная Каталог продукции Toolunited 13 303-11 - Thread end mill with drilling part GF422201.0050

GF422201.0050

GF422201.0050 GF422201.0050

GF422201.0050

Emuge
Артикул: GF422201.0050
В наличии
В корзину
Описание
Характеристики
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
E - Emuge
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
4.04 mm
Delivery state valid from
2/1/2024
DIN
ZYL00601015
FamilyProducts
carbide drill thread mill
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
VHM
GRDPRIO Standard designation of the grade main application
VHM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LF Functional length
37 mm
LH Head length
8.9 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00601015
LPR Protruding length
19 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
GF422201.0050
OAL Overall length
55 mm
PRFA Profile included angle
138 Degree
TD Thread diameter
5 mm
THFT Thread form type
M
TP Thread pitch
0.8 mm
Working process
FSB - Thrilling (drilling & threading)
WT Weight of item
0.016 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
