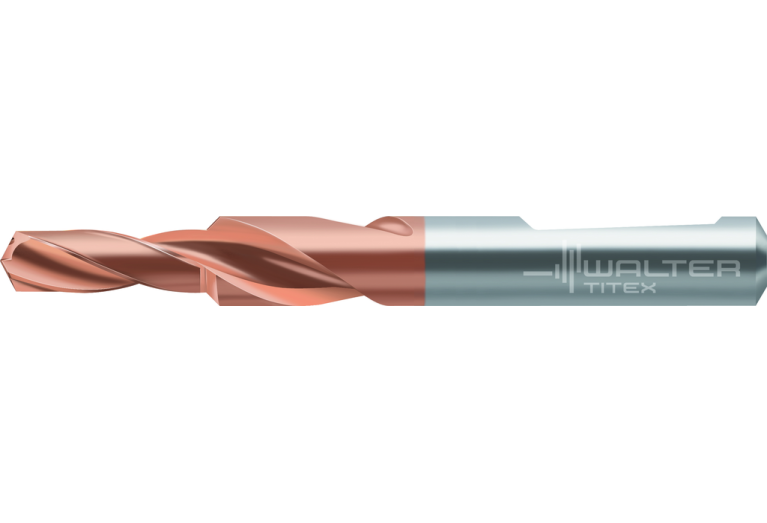

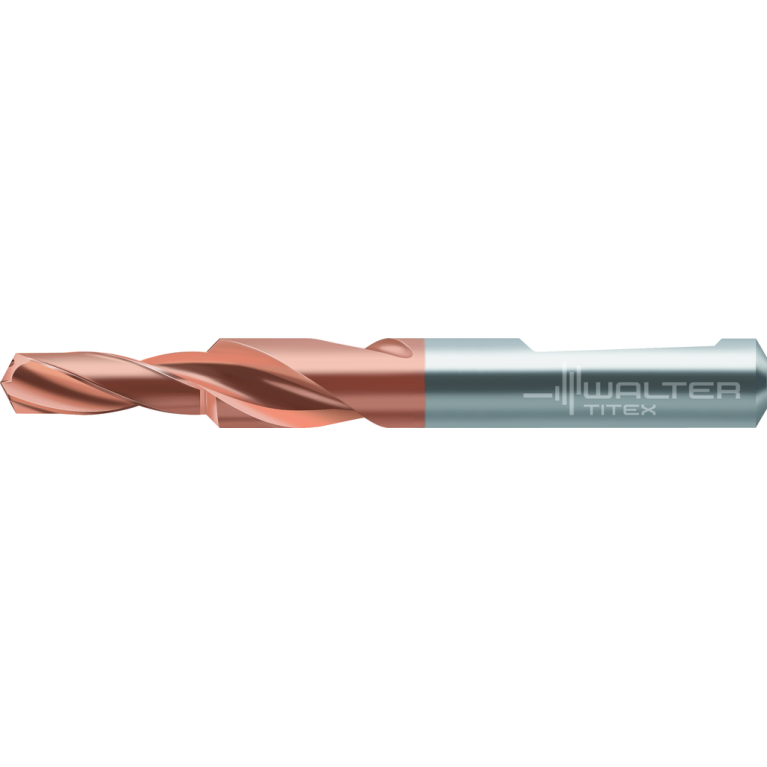

Главная Каталог продукции Toolunited 13 302-02 - Step drill K3899XPL-M16

K3899XPL-M16

Артикул: 6139103

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01801305

FamilyProducts

Solid carbide chamfer drills with coolant-through K3899XPL

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

XPL

HAND Cutting direction

R - Right

ID Technical product number

6139103

Interface codes

J6 / J61

ISO

ZYL13G1800h$06

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

73 mm

LF Functional length

75 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL13G1800h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01801305

LPR Protruding length

74.999794 mm

LS Shank length

48 mm

LU Usable length

43 mm

Name Identifying order number

K3899XPL-M16

NOF Flute count

NOS Step count

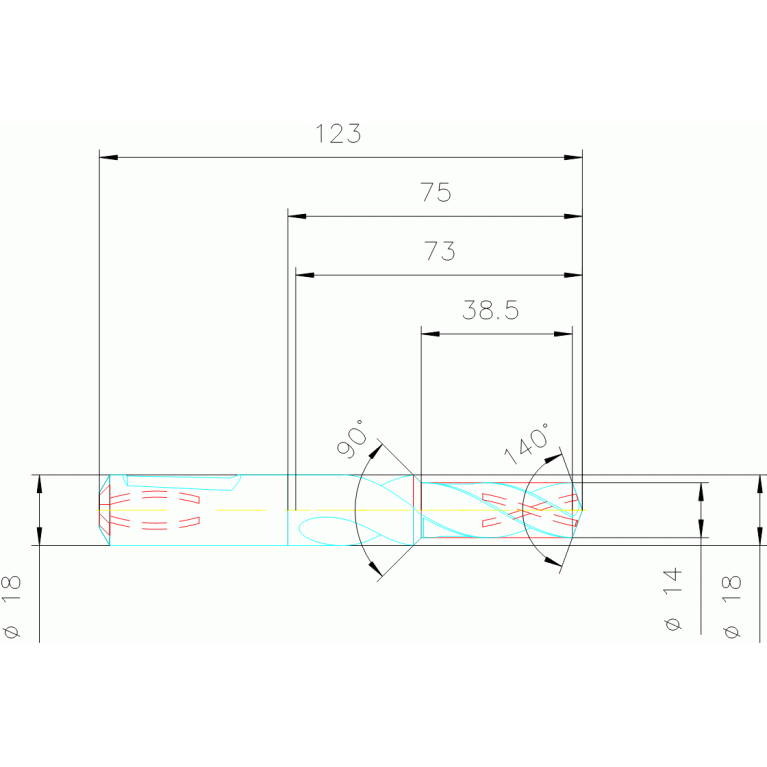

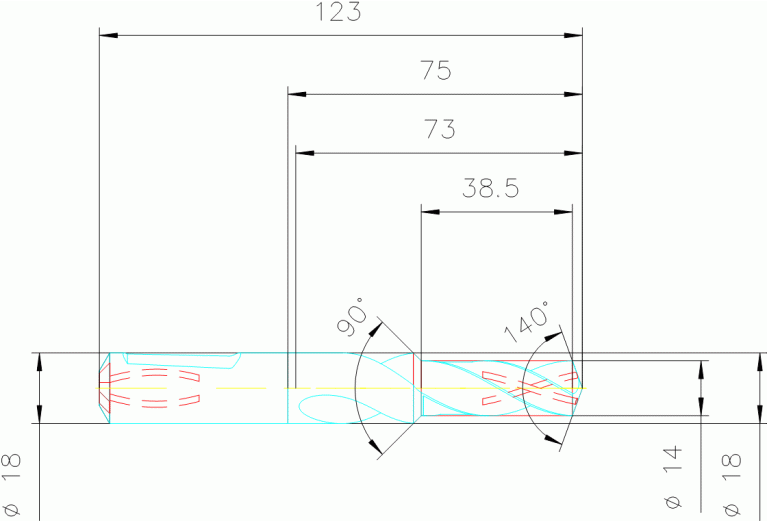

OAL Overall length

123 mm

PL Point length

2.5477917 mm

RPMX Rotational speed maximum

100000 1/min

SDL Step diameter length

38.5 mm

SIG Point angle 1st step

140 Degree

STDLET Standard letter to the standard number

STDNO Standard

TP-NORM 65

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.296 kg
