Главная Каталог продукции Toolunited 13 302-02 - Step drill 117160 M6

117160 M6

Артикул: 117160 M6

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL01240105

FamilyProducts

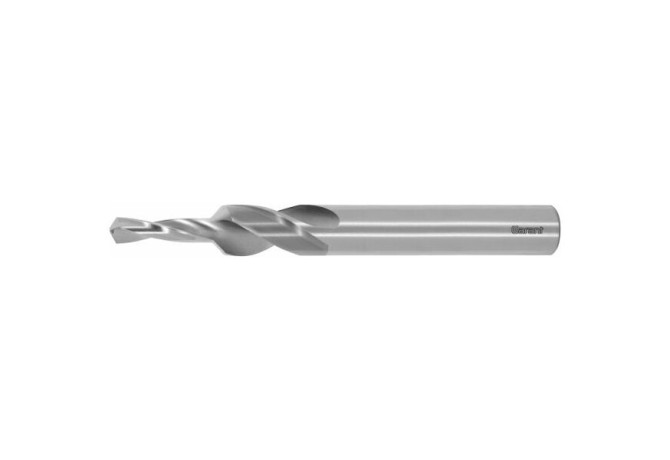

GARANT HSS/E subland drill with long pilot drill 90°

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0124

LOC-03 DCONMS Diameter

12.4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01240105

LPR Protruding length

65 mm

LU Usable length

42 mm

Name Identifying order number

117160 M6

NOF Flute count

NOS Step count

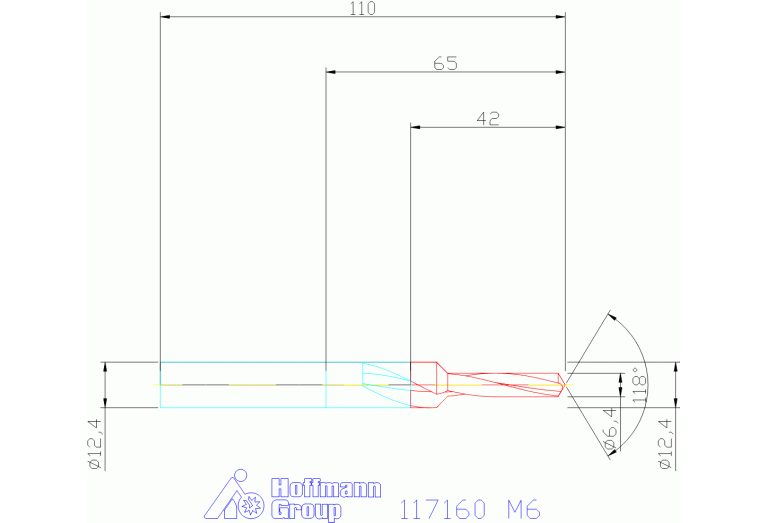

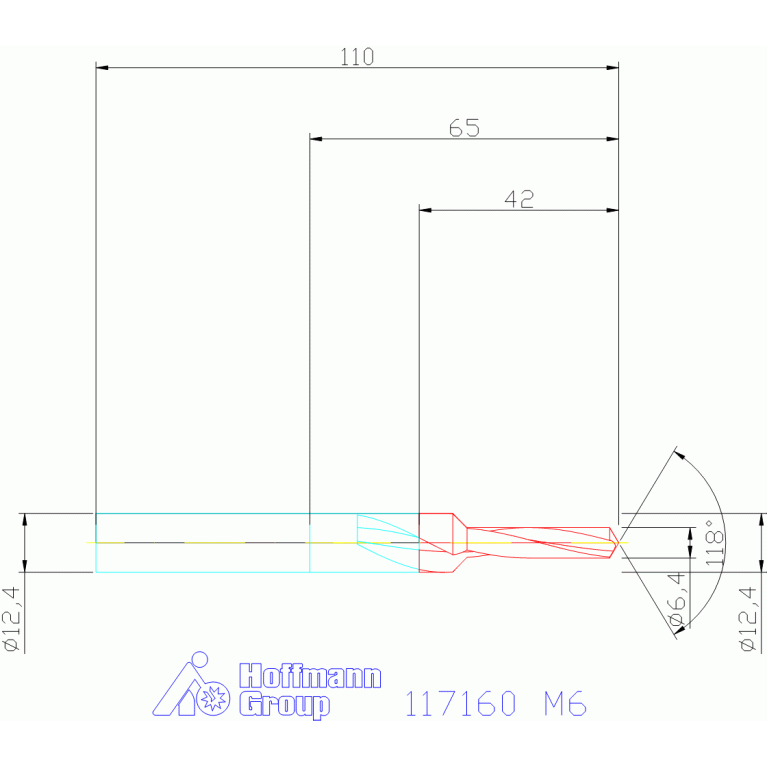

OAL Overall length

110 mm

PL Point length

1.92 mm

SDL Step diameter length

30 mm

SIG Point angle 1st step

118 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.068 kg
