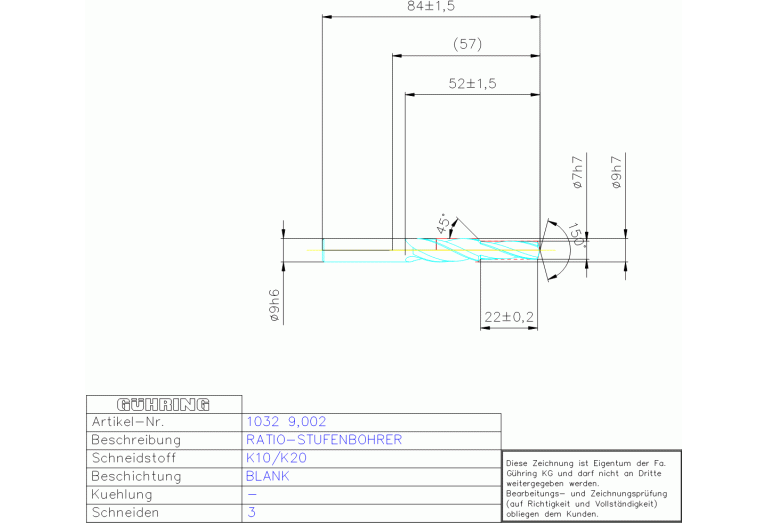

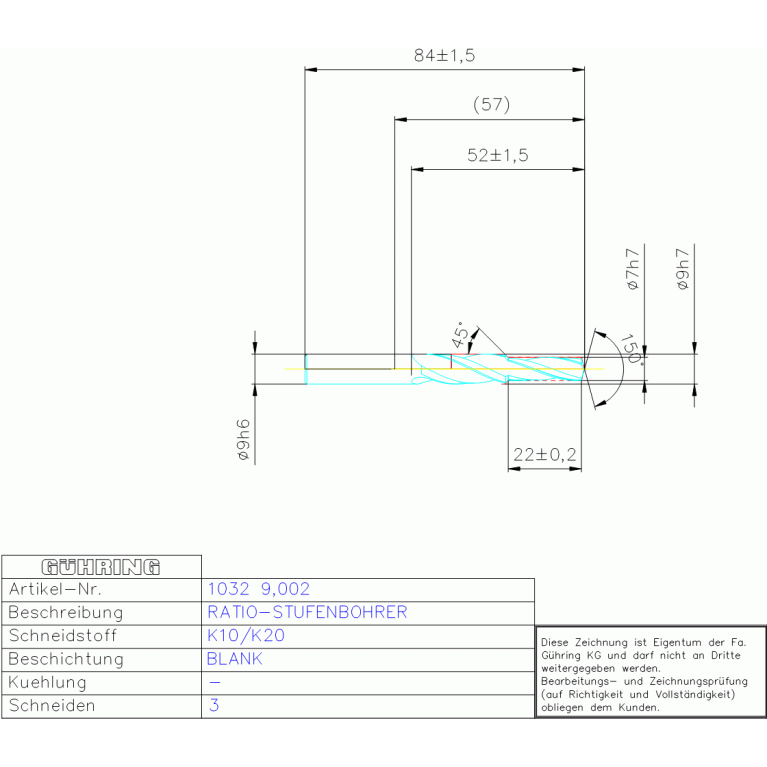

1032 9.002
1032 9.002
Артикул:
1032 9.002
В наличии
Характеристики
BMC Body material code
H - Solid carbide
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
7 mm
DCONMSLD Shank diameter lower limit
-0.009 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00900105
FamilyProducts
RATIO-STUFENBOHRER
FHA Flute helix angle
28 Degree
FHH Flute helix hand
R - Hand of helix right
FHP Flute helix pitch
56 mm
GRD2ND Standard designation of the grade 2nd application
K10/K20
GRDMFG Grade manufacturers designation
K10/K20
GRDPRIO Standard designation of the grade main application
HF-K
GRDSYC Grind style code
GG-KG
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-02 - Step drill
LCF Length chip flute
52 mm
LF Functional length
83 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0090
LOC-03 DCONMS Diameter
9 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00900105
LPR Protruding length
57 mm
LS Shank length
32 mm
LU Usable length
40 mm
Name Identifying order number
1032 9.002
NOF Flute count
3
NOS Step count
2
OAL Overall length
84 mm
PL Point length
1 mm
SDL Step diameter length
22 mm
SIG Point angle 1st step
150 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BPB - Drilling of profiles
WT Weight of item
0.052 kg
