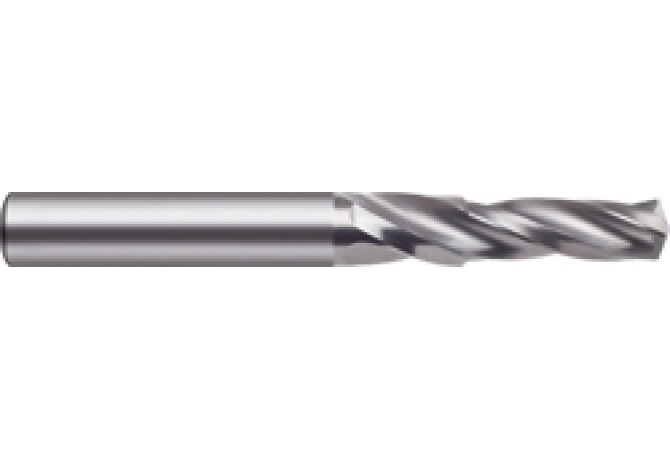

Главная Каталог продукции Toolunited 13 302-02 - Step drill 1032 15.800

1032 15.800

Артикул: 1032 15.800

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

13.5 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01580105

FamilyProducts

RATIO-STUFENBOHRER

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

93.4 mm

GRD2ND Standard designation of the grade 2nd application

DK120

GRDMFG Grade manufacturers designation

DK120

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

73 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0158

LOC-03 DCONMS Diameter

15.8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01580105

LPR Protruding length

78 mm

LS Shank length

42 mm

LU Usable length

52 mm

Name Identifying order number

1032 15.800

NOF Flute count

NOS Step count

OAL Overall length

115 mm

PL Point length

1.9 mm

SDL Step diameter length

38 mm

SIG Point angle 1st step

150 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BPB - Drilling of profiles

WT Weight of item

0.213 kg
