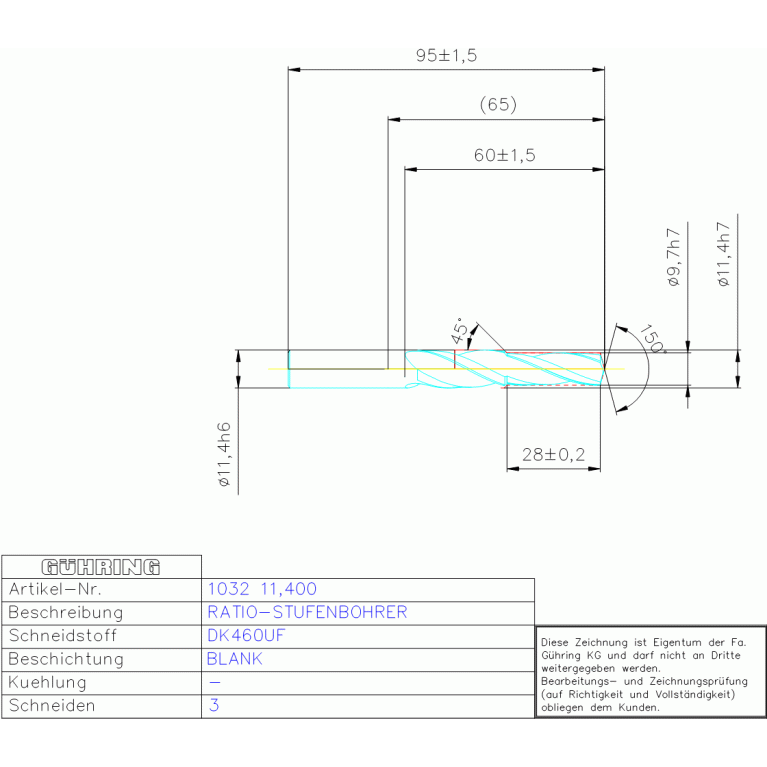

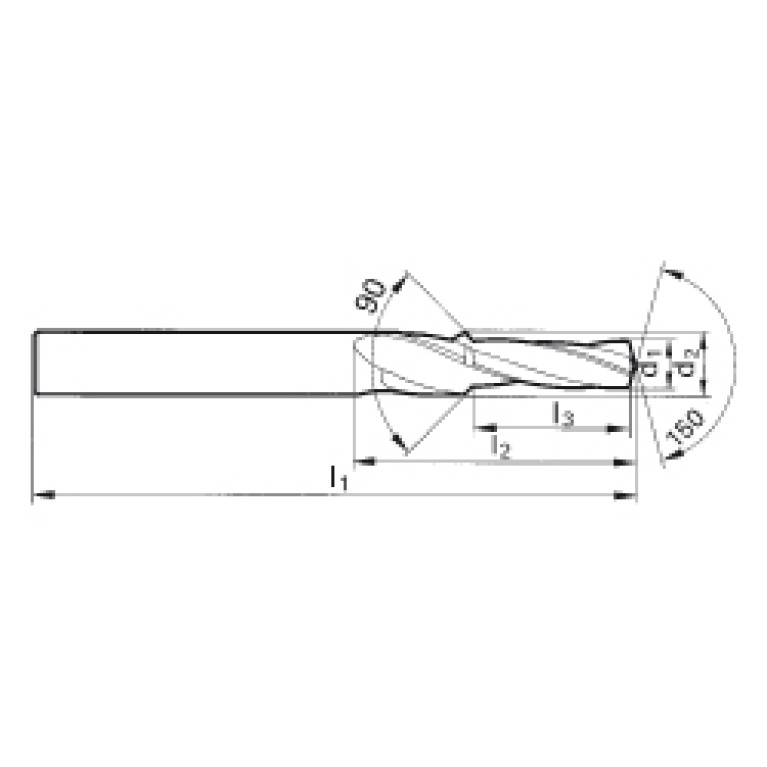

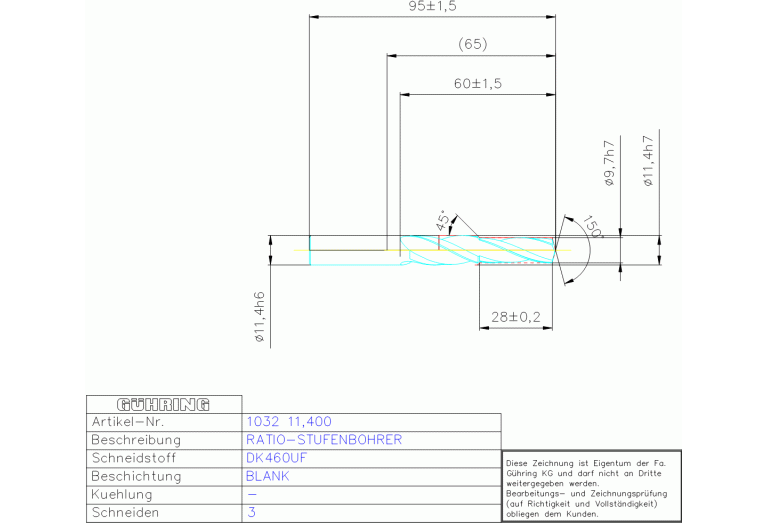

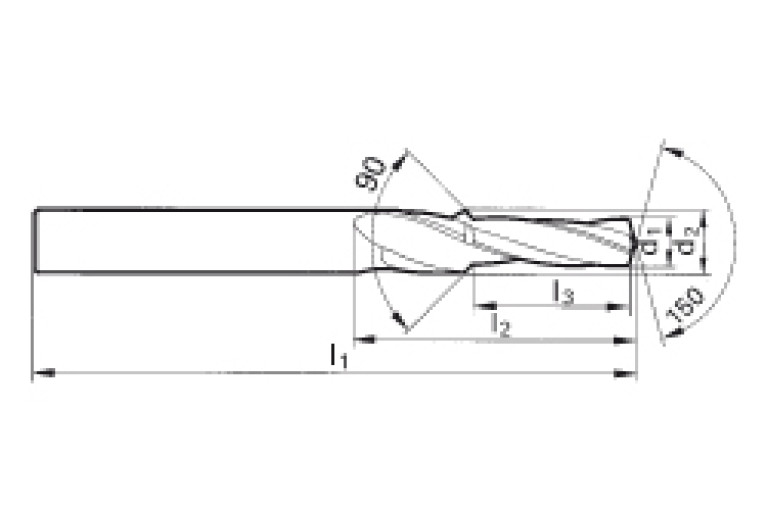

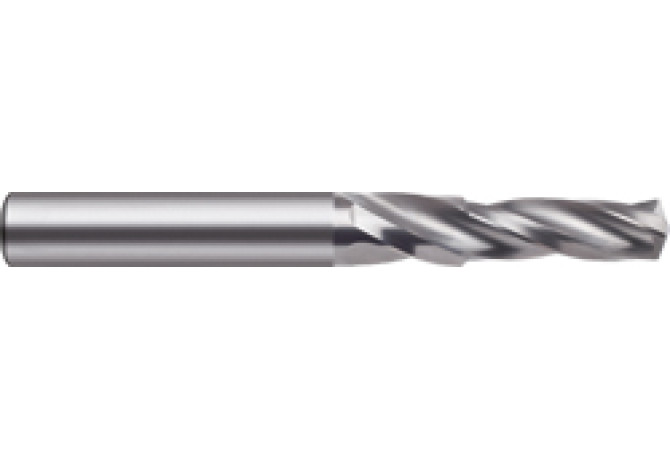

Главная Каталог продукции Toolunited 13 302-02 - Step drill 1032 11.400

1032 11.400

Артикул: 1032 11.400

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

9.7 mm

DCONMSLD Shank diameter lower limit

-0.011 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL01140105

FamilyProducts

RATIO-STUFENBOHRER

FHA Flute helix angle

28 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

67.4 mm

GRD2ND Standard designation of the grade 2nd application

DK460UF

GRDMFG Grade manufacturers designation

DK460UF

GRDPRIO Standard designation of the grade main application

HF-K

GRDSYC Grind style code

GG-KG

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0114

LOC-03 DCONMS Diameter

11.4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01140105

LPR Protruding length

65 mm

LS Shank length

35 mm

LU Usable length

45 mm

Name Identifying order number

1032 11.400

NOF Flute count

NOS Step count

OAL Overall length

95 mm

PL Point length

1.3 mm

SDL Step diameter length

28 mm

SIG Point angle 1st step

150 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BPB - Drilling of profiles

WT Weight of item

0.093 kg
