Главная Каталог продукции Toolunited 13 306-02 - Step drill DCT 085-026-14B-M10

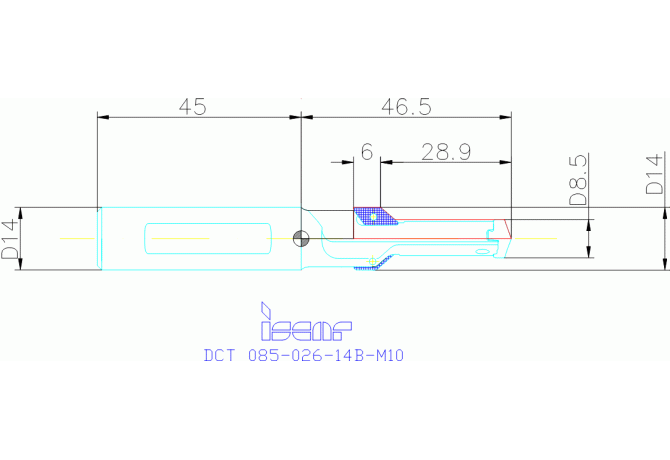

DCT 085-026-14B-M10

Артикул: 3201004

В наличии

В корзину

Описание

Характеристики

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CEDC Cutting edge count step

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8.3 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

8.9 mm

DIN

ZYL01401105

FamilyProducts

Indexable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

ID Technical product number

3201004

Interface codes

J6 / J61

ISO

ZYL11G1400h$06

ISYC Subclass

306-02 - Step drill

LOC-01 BI Block index

LOC-01 ISO

IS$$431805247176072

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-431805247176072

LOC-02 BI Block index

LOC-02 ISO

IS$$81957111339088

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-81957111339088

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G1400h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401105

LPR Protruding length

48 mm

LS Shank length

45 mm

LU Usable length

36.6 mm

Name Identifying order number

DCT 085-026-14B-M10

OAL Overall length

93.05 mm

PL Point length

1.55 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.07 kg
