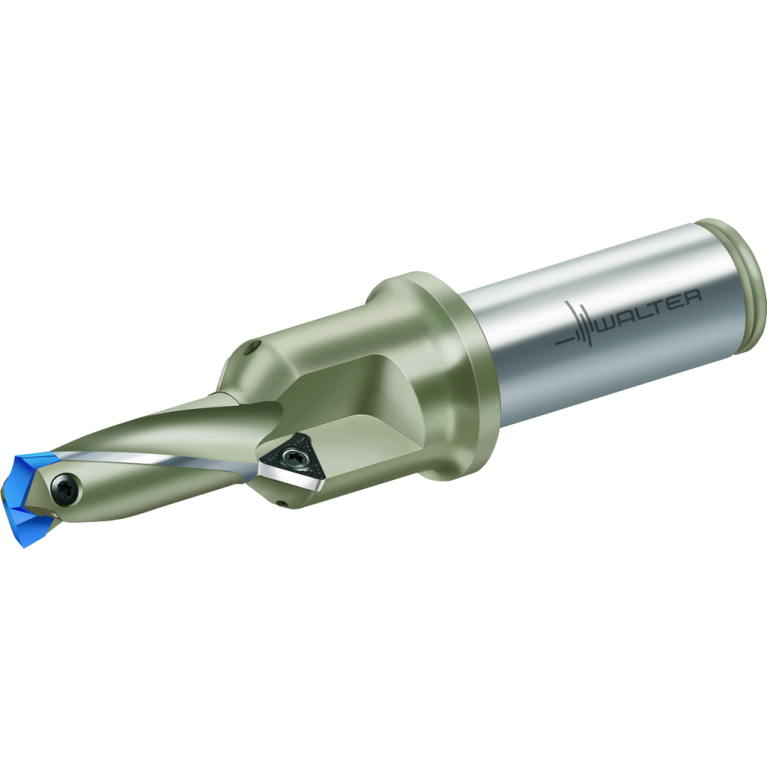

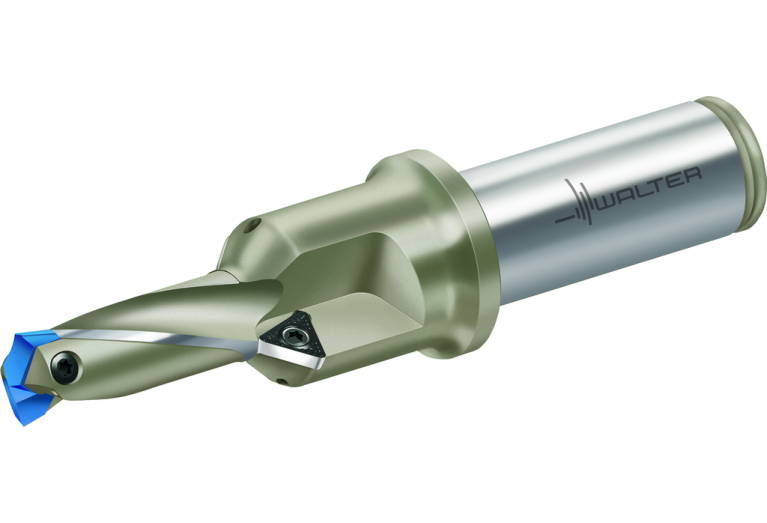

Главная Каталог продукции Toolunited 13 306-02 - Step drill B4012C.F25.26,0.Z02.66R

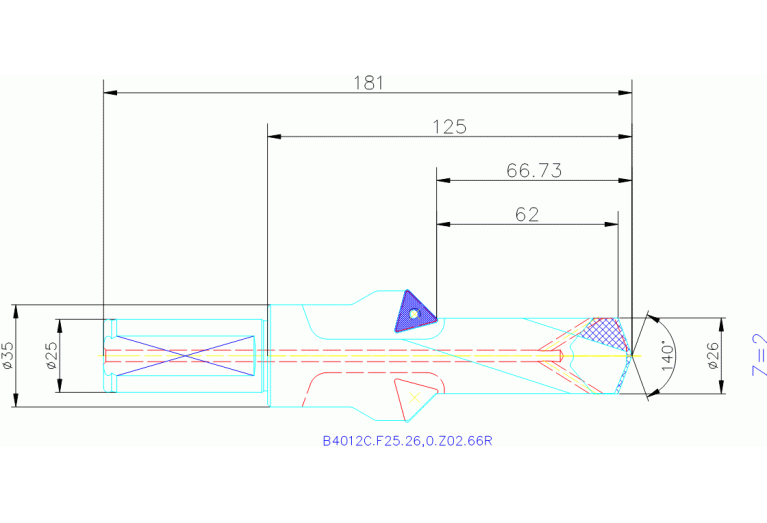

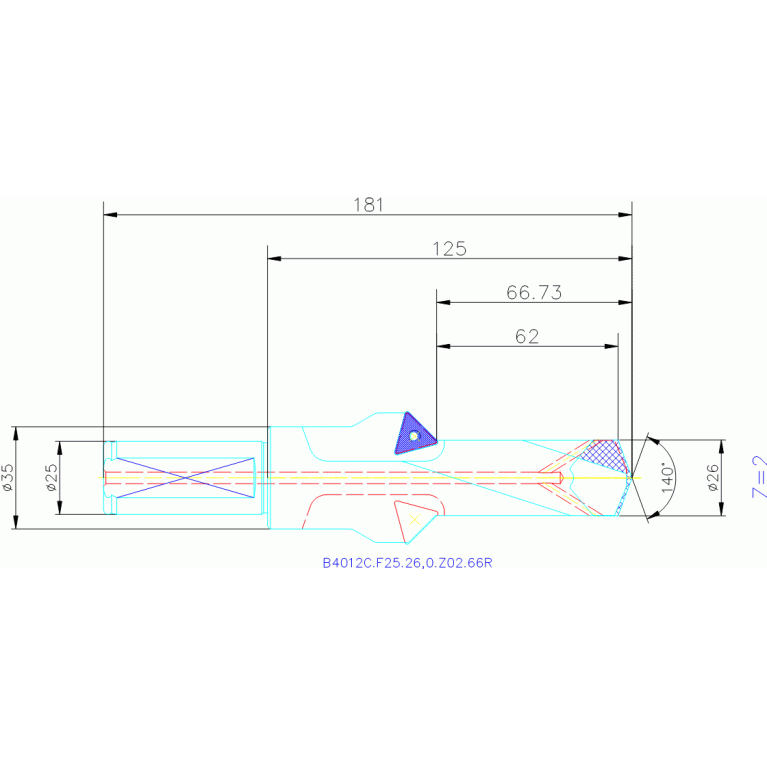

B4012C.F25.26,0.Z02.66R

B4012C.F25.26,0.Z02.66R B4012C.F25.26,0.Z02.66R B4012C.F25.26,0.Z02.66R B4012C.F25.26,0.Z02.66R

B4012C.F25.26,0.Z02.66R

Walter
Артикул: 5293572
В наличии
В корзину
Описание
Характеристики
BLDB Tool style code Position B
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
2
CEDC Cutting edge count step
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
26 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
26.99 mm
Delivery state valid from
12/1/2023
DIN
ZYL02501115
FamilyProducts
Core-hole drills B4012C
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
5293572
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL11G2500h$06
ISYC Subclass
306-02 - Step drill
LCF Length chip flute
112 mm
LF Functional length
48.57 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
TCMT 16 T3 08
LOC-02 ISO
ISO$TC16T3003******
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
TC16T3993N
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL11G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501115
LPR Protruding length
125 mm
LS Shank length
56 mm
LU Usable length
76.3 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
B4012C.F25.26,0.Z02.66R
NOS Step count
1
NUMBER INSERTS INSIDE Number of inserts inside
1
OAL Overall length
181 mm
PL Point length
4.73 mm
RPMX Rotational speed maximum
9790 1/min
SDL Step diameter length
62 mm
SIG Point angle 1st step
140 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.68 kg
