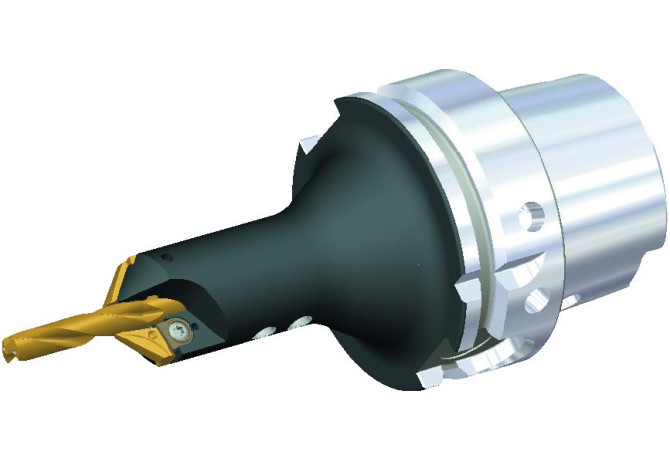

Главная Каталог продукции Toolunited 13 306-09 - Step drill for adjustable solid drill SEF080100RHSK63AM

SEF080100RHSK63AM

SEF080100RHSK63AM SEF080100RHSK63AM SEF080100RHSK63AM

SEF080100RHSK63AM

Kennametal
Артикул: 1760749
В наличии
В корзину
Описание
Характеристики
BD Body diameter 1st step
29 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
8 mm
Delivery state valid from
5/28/2017
DIN
HSK06300195
FamilyProducts
SEFAS HSK BODY
ID Technical product number
1760749
Interface codes
J6 /
ISYC Subclass
306-09 - Step drill for adjustable solid drill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 DCONMS Diameter
111 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LU Usable length
68 mm
Name Identifying order number
SEF080100RHSK63AM
Working process
No working processes available
