Главная Каталог продукции Toolunited 13 306-09 - Step drill for adjustable solid drill MNC 500-250 A40-269-12-5D

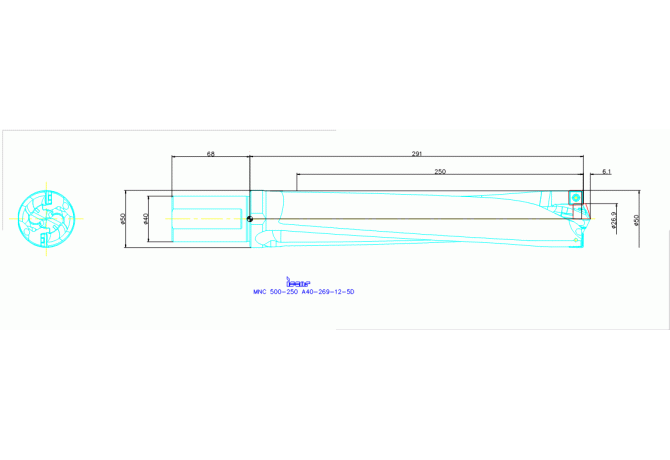

MNC 500-250 A40-269-12-5D

Артикул: 3202885

В наличии

В корзину

Описание

Характеристики

A1B Cutting edge angle major Pos. B

90 Degree

B1B Cutting edge length Pos. B

12.7 mm

B3B Inscribed circle diameter Pos. B

12.7 mm

BLDB Tool style code Position B

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1B Corner radius Pos. B

0.8 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

26.9 mm

Delivery state valid from

9/11/2017

DF Flange diameter

50 mm

DIN

ZYL04001115

FamilyProducts

COMBICHAM Indexable Drill, Pilot Drilling Head 5xD

HAND Cutting direction

R - Right

ID Technical product number

3202885

Interface codes

J6 / J61

ISO

ZYL11G4000h$06

ISYC Subclass

306-09 - Step drill for adjustable solid drill

LOC-01 BI Block index

LOC-01 MIID Master insert identification

SOGT120408-W

LOC-01 ISO

IS$$185581313714784

LOC-01-Connection-codes

J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills

LOC-01-DIN

IS-26IC

LOC-02 ISO

IS$$195839612212405

LOC-02-Connection-codes

J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G4000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04001115

LPR Protruding length

297.1 mm

LS Shank length

68 mm

LU Usable length

256.1 mm

Name Identifying order number

MNC 500-250 A40-269-12-5D

NUMBER INSERTS OUTSIDE Number of inserts outside

OAL Overall length

365.1 mm

TCDCONMS ISO-tolerance class shank diameter

TL Taper length

6.1 mm

Working process

BVB - Drilling

WT Weight of item

2.82 kg

Максимальный диаметр корпуса (BDX) / Body diameter maximum (BDX)

50 mm
