Главная Каталог продукции Toolunited 13 306-09 - Step drill for adjustable solid drill CHAMRING 120-WN32-09

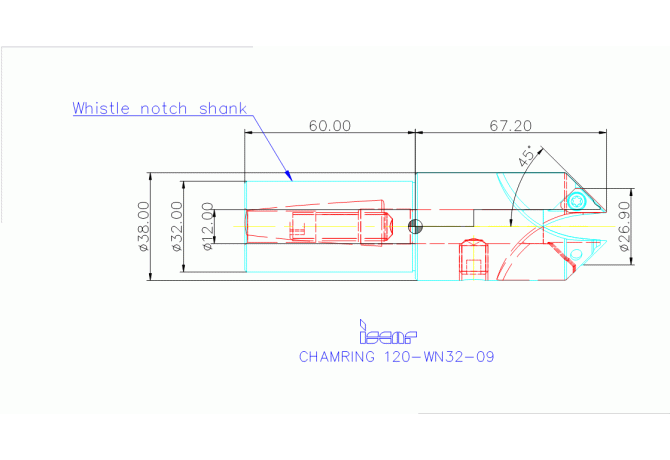

CHAMRING 120-WN32-09

CHAMRING 120-WN32-09 CHAMRING 120-WN32-09

CHAMRING 120-WN32-09

Iscar
Артикул: 3201145
В наличии
В корзину
Описание
Характеристики
A2B Clearance angle major Pos. B
7 Degree
ADJBY Adjustment property
2 - Axial adjustment possible
B1B Cutting edge length Pos. B
16 mm
B3B Inscribed circle diameter Pos. B
8.8 mm
BLDB Tool style code Position B
99
C1B Insert thickness Pos. B
3.3 mm
CCF Connection code form
01
CCONMS Connection count machine side
1
CCT Connection code type
ZYL
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
CZC Connection size code
0120
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
11.5 mm
Delivery state valid from
2/3/2016
DIN
ZYL03201315
FamilyProducts
CHAMRING 120-WN32-09
HAND Cutting direction
R - Right
ID Technical product number
3201145
Interface codes
J6 /
ISYC Subclass
306-09 - Step drill for adjustable solid drill
LOC-01 BI Block index
1
LOC-01 CCF Connection code form
01
LOC-01 CCT Connection code type
ZYL cylindrical shank
LOC-01 CZC Connection size code
0120
LOC-01 MTP Clamping type code 1st step
S Screwed on across the bore, with counter bore
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
ZYL01201015
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
XCGT090300-45DT
LOC-02 MTP Clamping type code 1st step
S Screwed on across the bore, with counter bore
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
XC0903003N
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201315
LPR Protruding length
67.3 mm
LS Shank length
60 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
CHAMRING 120-WN32-09
OAL Overall length
127.3 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
